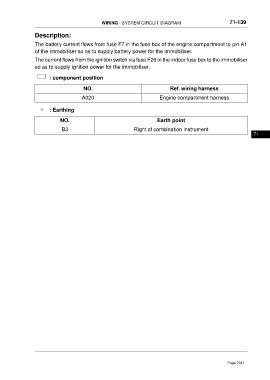

WIRING - SYSTEM CIRCUIT DIAGRAM 71-139
Description:
The battery current flows from fuse F7 in the fuse box of the engine compartment to pin A1
of the immobiliser so as to supply battery power for the immobiliser.
The current flows from the ignition switch via fuse F26 in the indoor fuse box to the immobiliser
so as to supply ignition power for the immobiliser.
: component position
NO. Ref. wiring harness
A020 Engine compartment harness
: Earthing
NO. Earth point
B3 Right of combination instrument
71
