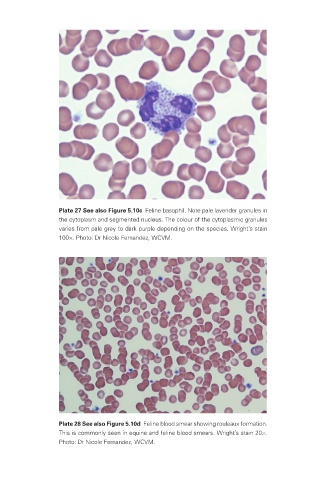

Plate 27 See also Figure 5.10c Feline basophil. Note pale lavender granules in
the cytoplasm and segmented nucleus. The colour of the cytoplasmic granules
varies from pale grey to dark purple depending on the species. Wright’s stain
100×. Photo: Dr Nicole Fernandez, WCVM.
Plate 28 See also Figure 5.10d Feline blood smear showing rouleaux formation.
This is commonly seen in equine and feline blood smears. Wright’s stain 20×.
Photo: Dr Nicole Fernandez, WCVM.
