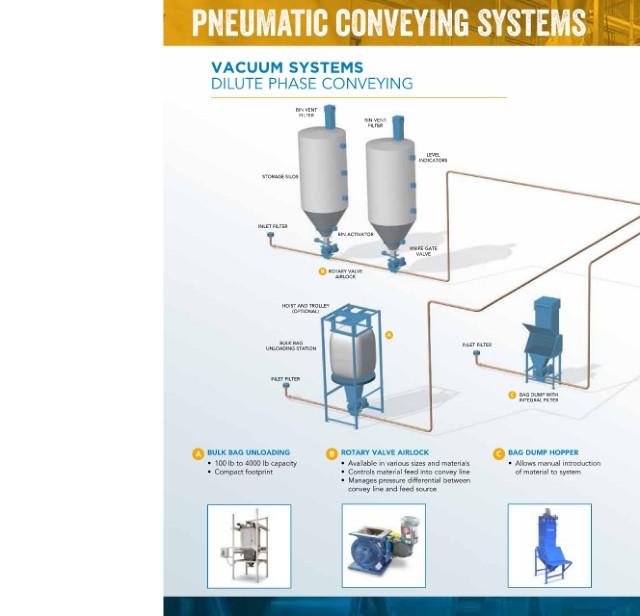

pneumatic conveying systems
VACUUM SYSTEMS
DILUTE PHASE CONVEYING
FEATURES
BIN VENT • MULTIPLE PICK-UP POINTS
FILTER
BIN VENT
FILTER • COMMON DESTINATION
• INHERENT DUST CONTROL
• GOOD FOR HAZARDOUS MATERIAL APPLICATIONS
LEVEL
INDICATORS
STORAGE SILOS
D FILTER
RECEIVER VACUUM
BREAKER
INLET FILTER SLIDE
BIN ACTIVATOR DIVERTER
VALVE
KNIFE-GATE
VALVE
LEVEL INDICATORS
B ROTARY VALVE SCALE HOPPER
AIRLOCK
ROTARY VALVE AIRLOCK
HOIST AND TROLLEY
(OPTIONAL) LOAD CELLS
BUTTERFLY VALVES
A
BULK BAG
UNLOADING STATION INLET FILTER
CUSTOMER
PROCESS
INLET FILTER
C BAG DUMP WITH E VACUUM BLOWER
INTEGRAL FILTER
PACKAGE
A BULK BAG UNLOADING B ROTARY VALVE AIRLOCK C BAG DUMP HOPPER D FILTER RECEIVER E VACUUM BLOWER PACKAGE
• 100 lb to 4000 lb capacity • Available in various sizes and materials • Allows manual introduction • Material-Air Separator • Positive displacement blower
• Compact footprint • Controls material feed into convey line of material to system • Filter bags or cartridges • Vacuum levels to 17 inches Hg
• Manages pressure differential between • Designed for up to 17 inches Hg
convey line and feed source
