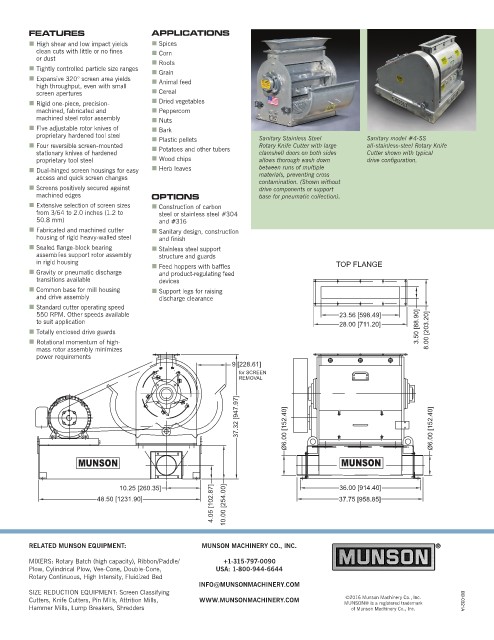

FEATURES APPLICATIONS
n High shear and low impact yields n Spices
clean cuts with little or no fines n Corn
or dust n Roots
n Tightly controlled particle size ranges
n Grain
n Expansive 320° screen area yields n Animal feed
high throughput, even with small
screen apertures n Cereal
n Rigid one-piece, precision- n Dried vegetables
machined, fabricated and n Peppercorn
machined steel rotor assembly n Nuts
n Five adjustable rotor knives of n Bark
proprietary hardened tool steel n Plastic pellets Sanitary Stainless Steel Sanitary model #4-SS
n Four reversible screen-mounted Rotary Knife Cutter with large all-stainless-steel Rotary Knife
stationary knives of hardened n Potatoes and other tubers clamshell doors on both sides Cutter shown with typical
proprietary tool steel n Wood chips allows thorough wash down drive configuration.
n Dual-hinged screen housings for easy n Herb leaves between runs of multiple
access and quick screen changes materials, preventing cross
contamination. (Shown without
n Screens positively secured against drive components or support
machined edges OPTIONS base for pneumatic collection).
n Extensive selection of screen sizes n Construction of carbon
from 3/64 to 2.0 inches (1.2 to steel or stainless steel #304
50.8 mm) and #316
n Fabricated and machined cutter n Sanitary design, construction
housing of rigid heavy-walled steel and finish
n Sealed flange-block bearing n Stainless steel support
assemblies support rotor assembly structure and guards
in rigid housing n Feed hoppers with baffles TOP FLANGE

n Gravity or pneumatic discharge and product-regulating feed
transitions available devices
n Common base for mill housing n Support legs for raising

and drive assembly discharge clearance
n Standard cutter operating speed
550 RPM. Other speeds available 23.56 [598.49]
to suit application 28.00 [711.20]
n Totally enclosed drive guards 3.50 [88.90] 8.00 [203.20]
n Rotational momentum of high-
mass rotor assembly minimizes
power requirements
9 [228.61]
for SCREEN
REMOVAL

37.32 [947.97] Ø6.00 [152.40] Ø6.00 [152.40]

MUNSON MUNSON

4.05 [102.87] 10.00 [254.00]
10.25 [260.35] 36.00 [914.40]
48.50 [1231.90] 37.75 [958.85]

RELATED MUNSON EQUIPMENT: MUNSON MACHINERY CO., INC.
MIXERS: Rotary Batch (high capacity), Ribbon/Paddle/ +1-315-797-0090
Plow, Cylindrical Plow, Vee-Cone, Double-Cone, USA: 1-800-944-6644
Rotary Continuous, High Intensity, Fluidized Bed
INFO@MUNSONMACHINERY.COM
SIZE REDUCTION EQUIPMENT: Screen Classifying
©2016 Munson Machinery Co., Inc.
Cutters, Knife Cutters, Pin Mills, Attrition Mills, WWW.MUNSONMACHINERY.COM MUNSON® is a registered trademark BB-0321A
Hammer Mills, Lump Breakers, Shredders of Munson Machinery Co., Inc.
