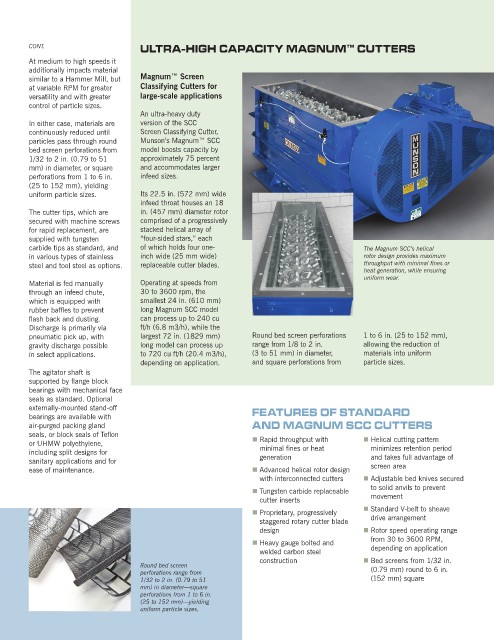

CONT. ULTRA-HIGH CAPACITY MAGNUM CUTTERS
At medium to high speeds it
additionally impacts material
similar to a Hammer Mill, but Magnum™ Screen
at variable RPM for greater Classifying Cutters for
versatility and with greater large-scale applications
control of particle sizes.
An ultra-heavy duty
In either case, materials are version of the SCC
continuously reduced until Screen Classifying Cutter,
particles pass through round Munson’s Magnum™ SCC
bed screen perforations from model boosts capacity by
1/32 to 2 in. (0.79 to 51 approximately 75 percent
mm) in diameter, or square and accommodates larger
perforations from 1 to 6 in. infeed sizes.
(25 to 152 mm), yielding
uniform particle sizes. Its 22.5 in. (572 mm) wide
infeed throat houses an 18
The cutter tips, which are in. (457 mm) diameter rotor
secured with machine screws comprised of a progressively
for rapid replacement, are stacked helical array of
supplied with tungsten “four-sided stars,” each
carbide tips as standard, and of which holds four one- The Magnum SCC’s helical
in various types of stainless inch wide (25 mm wide) rotor design provides maximum
steel and tool steel as options. replaceable cutter blades. throughput with minimal fines or
heat generation, while ensuring
uniform wear.
Material is fed manually Operating at speeds from
through an infeed chute, 30 to 3600 rpm, the
which is equipped with smallest 24 in. (610 mm)
rubber baffles to prevent long Magnum SCC model
flash back and dusting. can process up to 240 cu
Discharge is primarily via ft/h (6.8 m3/h), while the
pneumatic pick up, with largest 72 in. (1829 mm) Round bed screen perforations 1 to 6 in. (25 to 152 mm),
gravity discharge possible long model can process up range from 1/8 to 2 in. allowing the reduction of
in select applications. to 720 cu ft/h (20.4 m3/h), (3 to 51 mm) in diameter, materials into uniform
depending on application. and square perforations from particle sizes.
The agitator shaft is
supported by flange block
bearings with mechanical face
seals as standard. Optional
externally-mounted stand-off FEATURES OF STANDARD
bearings are available with
air-purged packing gland AND MAGNUM SCC CUTTERS
seals, or block seals of Teflon
or UHMW polyethylene, n Rapid throughput with n Helical cutting pattern
including split designs for minimal fines or heat minimizes retention period
sanitary applications and for generation and takes full advantage of
ease of maintenance. n Advanced helical rotor design screen area
with interconnected cutters n Adjustable bed knives secured
n Tungsten carbide replaceable to solid anvils to prevent
cutter inserts movement
n Standard V-belt to sheave
n Proprietary, progressively
staggered rotary cutter blade drive arrangement
design n Rotor speed operating range
n Heavy gauge bolted and from 30 to 3600 RPM,
welded carbon steel depending on application
construction n Bed screens from 1/32 in.
Round bed screen (0.79 mm) round to 6 in.
perforations range from
1/32 to 2 in. (0.79 to 51 (152 mm) square
mm) in diameter —square
perforations from 1 to 6 in.
(25 to 152 mm)—yielding
uniform particle sizes.
