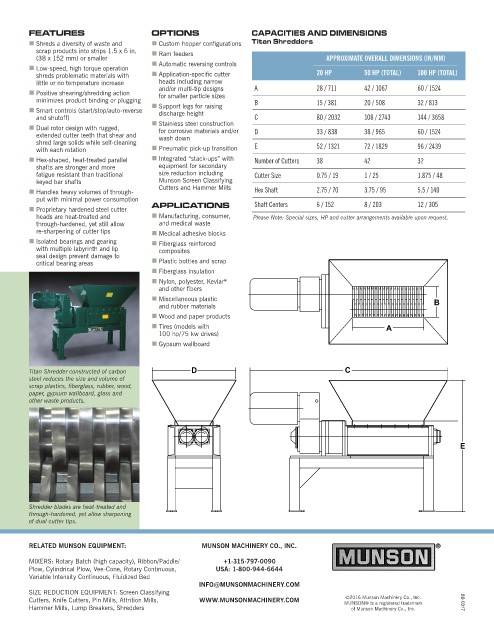

FEATURES OPTIONS CAPACITIES AND DIMENSIONS
n Shreds a diversity of waste and n Custom hopper configurations Titan Shredders
scrap products into strips 1.5 x 6 in. n Ram feeders
(38 x 152 mm) or smaller APPROXIMATE OVERALL DIMENSIONS (IN/MM)
n Low-speed, high torque operation n Automatic reversing controls 20 HP 50 HP (TOTAL) 100 HP (TOTAL)
shreds problematic materials with n Application-specific cutter
little or no temperature increase heads including narrow A 28 / 711 42 / 1067 60 / 1524
n Positive shearing/shredding action and/or multi-tip designs
for smaller particle sizes
minimizes product binding or plugging B 15 / 381 20 / 508 32 / 813
n Smart controls (start/stop/auto-reverse n Support legs for raising
discharge height
and shutoff) C 80 / 2032 108 / 2743 144 / 3658
n Dual rotor design with rugged, n Stainless steel construction D 33 / 838 38 / 965 60 / 1524
for corrosive materials and/or
extended cutter teeth that shear and wash down
shred large solids while self-cleaning E 52 / 1321 72 / 1829 96 / 2439
with each rotation n Pneumatic pick-up transition
n Hex-shaped, heat-treated parallel n Integrated “stack-ups” with Number of Cutters 38 42 32
shafts are stronger and more equipment for secondary
fatigue resistant than traditional size reduction including Cutter Size 0.75 / 19 1 / 25 1.875 / 48
keyed bar shafts Munson Screen Classifying
n Handles heavy volumes of through- Cutters and Hammer Mills Hex Shaft 2.75 / 70 3.75 / 95 5.5 / 140
put with minimal power consumption Shaft Centers 6 / 152 8 / 203 12 / 305
n Proprietary hardened steel cutter APPLICATIONS
heads are heat-treated and n Manufacturing, consumer, Please Note: Special sizes, HP and cutter arrangements available upon request.
through-hardened, yet still allow and medical waste
re-sharpening of cutter tips n Medical adhesive blocks
n Isolated bearings and gearing n Fiberglass reinforced
with multiple labyrinth and lip composites
seal design prevent damage to
critical bearing areas n Plastic bottles and scrap
n Fiberglass insulation
n Nylon, polyester, Kevlar
®
and other fibers
n Miscellaneous plastic
and rubber materials
n Wood and paper products
n Tires (models with
100 hp/75 kw drives)
n Gypsum wallboard

Titan Shredder constructed of carbon
steel reduces the size and volume of
scrap plastics, fiberglass, rubber, wood,
paper, gypsum wallboard, glass and
other waste products.

Shredder blades are heat-treated and
through-hardened, yet allow sharpening
of dual cutter tips.

RELATED MUNSON EQUIPMENT: MUNSON MACHINERY CO., INC.
MIXERS: Rotary Batch (high capacity), Ribbon/Paddle/ +1-315-797-0090
Plow, Cylindrical Plow, Vee-Cone, Rotary Continuous, USA: 1-800-944-6644
Variable Intensity Continuous, Fluidized Bed
INFO@MUNSONMACHINERY.COM
SIZE REDUCTION EQUIPMENT: Screen Classifying
©2016 Munson Machinery Co., Inc.
Cutters, Knife Cutters, Pin Mills, Attrition Mills, WWW.MUNSONMACHINERY.COM MUNSON® is a registered trademark BB-0317
Hammer Mills, Lump Breakers, Shredders of Munson Machinery Co., Inc.
