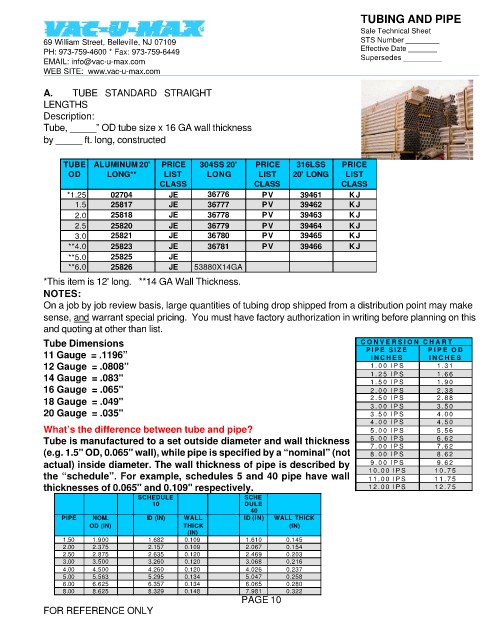

TUBING AND PIPE
Sale Technical Sheet
69 William Street, Belleville, NJ 07109 STS Number ________
PH: 973-759-4600 * Fax: 973-759-6449 Effective Date _______
EMAIL: info@vac-u-max.com Supersedes _________
WEB SITE: www.vac-u-max.com

A. TUBE STANDARD STRAIGHT
LENGTHS
Description:
Tube, _____” OD tube size x 16 GA wall thickness
by _____ ft. long, constructed

TUBE ALUMINUM 20' PRICE 304SS 20' PRICE 316LSS PRICE
OD LONG** LIST LONG LIST 20' LONG LIST
CLASS CLASS CLASS
*1.25 02704 JE 36776 PV 39461 KJ
1.5 25817 JE 36777 PV 39462 KJ
2.0 25818 JE 36778 PV 39463 KJ
2.5 25820 JE 36779 PV 39464 KJ
3.0 25821 JE 36780 PV 39465 KJ
**4.0 25823 JE 36781 PV 39466 KJ
**5.0 25825 JE
**6.0 25826 JE 53880X14GA

*This item is 12' long. **14 GA Wall Thickness.
NOTES:
On a job by job review basis, large quantities of tubing drop shipped from a distribution point may make
sense, and warrant special pricing. You must have factory authorization in writing before planning on this
and quoting at other than list.
Tube Dimensions C O N V E R S I O N C H A R T
11 Gauge = .1196” P I P E S I Z E P I P E O D
I N C H E S
I N C H E S
12 Gauge = .0808” 1 . 0 0 I P S 1 . 3 1
14 Gauge = .083" 1 . 2 5 I P S 1 . 6 6
1 . 9 0
I P S
1 . 5 0
16 Gauge = .065" 2 . 0 0 I P S 2 . 3 8
18 Gauge = .049" 2 . 5 0 I P S 2 . 8 8
3 . 5 0
3 . 0 0
I P S
20 Gauge = .035" 3 . 5 0 I P S 4 . 0 0
4 . 0 0 I P S 4 . 5 0
What’s the difference between tube and pipe? 5 . 0 0 I P S 5 . 5 6
Tube is manufactured to a set outside diameter and wall thickness 6 . 0 0 I P S 6 . 6 2
7 . 6 2
7 . 0 0
I P S
(e.g. 1.5" OD, 0.065" wall), while pipe is specified by a “nominal” (not 8 . 0 0 I P S 8 . 6 2
actual) inside diameter. The wall thickness of pipe is described by 9 . 0 0 I P S 9 . 6 2
I
the “schedule”. For example, schedules 5 and 40 pipe have wall 1 0 . 0 0 P S 1 0 . 7 5
1 1 . 7 5
1 1 . 0 0 P S
I
thicknesses of 0.065" and 0.109" respectively. 1 2 . 0 0 P S 1 2 . 7 5
I
SCHEDULE SCHE
10 DULE
40
PIPE NOM. ID (IN) WALL ID (IN) WALL THICK
OD (IN) THICK (IN)
(IN)
1.50 1.900 1.682 0.109 1.610 0.145
2.00 2.375 2.157 0.109 2.067 0.154
2.50 2.875 2.635 0.120 2.469 0.203
3.00 3.500 3.260 0.120 3.068 0.216
4.00 4.500 4.260 0.120 4.026 0.237
5.00 5.563 5.295 0.134 5.047 0.258
6.00 6.625 6.357 0.134 6.065 0.280
8.00 8.625 8.329 0.148 7.981 0.322
PAGE 10
FOR REFERENCE ONLY
