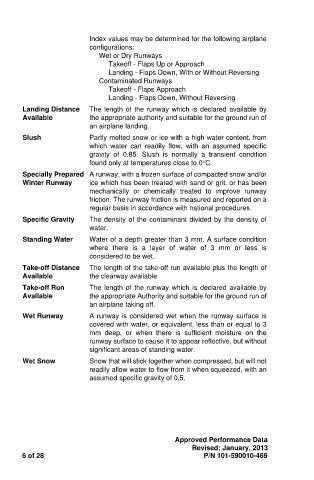

Page 753 - POH-SUPER KING AIR B200/B200C

101-590010-469R3_text.fm Page 6 Tuesday, January 29, 2013 8:56 AM

Index values may be determined for the following airplane
configurations:
Wet or Dry Runways
Takeoff - Flaps Up or Approach
Landing - Flaps Down, With or Without Reversing
Contaminated Runways
Takeoff - Flaps Approach
Landing - Flaps Down, Without Reversing
Landing Distance The length of the runway which is declared available by
Available the appropriate authority and suitable for the ground run of
an airplane landing.
Slush Partly melted snow or ice with a high water content, from
which water can readily flow, with an assumed specific
gravity of 0.85. Slush is normally a transient condition
found only at temperatures close to 0C.
Specially Prepared A runway, with a frozen surface of compacted snow and/or
Winter Runway ice which has been treated with sand or grit, or has been
mechanically or chemically treated to improve runway
friction. The runway friction is measured and reported on a
regular basis in accordance with national procedures.
Specific Gravity The density of the contaminant divided by the density of
water.
Standing Water Water of a depth greater than 3 mm. A surface condition
where there is a layer of water of 3 mm or less is
considered to be wet.
Take-off Distance The length of the take-off run available plus the length of
Available the clearway available.
Take-off Run The length of the runway which is declared available by
Available the appropriate Authority and suitable for the ground run of
an airplane taking off.
Wet Runway A runway is considered wet when the runway surface is
covered with water, or equivalent, less than or equal to 3
mm deep, or when there is sufficient moisture on the
runway surface to cause it to appear reflective, but without
significant areas of standing water.
Wet Snow Snow that will stick together when compressed, but will not
readily allow water to flow from it when squeezed, with an
assumed specific gravity of 0.5.

Approved Performance Data
Revised: January, 2013
6 of 28 P/N 101-590010-469
