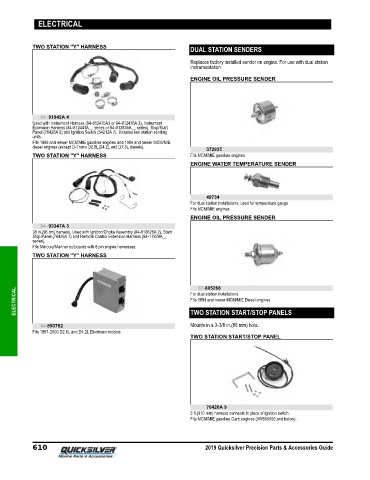

Page 617 - Quicksilver Accesories Guide 2019

ELECTRICAL

TWO STATION "Y" HARNESS
DUAL STATION SENDERS
Replaces factory installed sender on engine. For use with dual station
instrumentation.

ENGINE OIL PRESSURE SENDER

84- 91942A 4
Used with Instrument Harness (84‑812475A3 or 84‑812476A 3), Instrument
Extension Harness (84‑812441A__ series or 84‑812835A__ series), Stop/Start
Panel (76426A 9) and Ignition Switch (54212A 7). Includes two station sending
units.
Fits 1986 and newer MCM/MIE gasoline engines and 1994 and newer MCM/MIE
diesel engines (except D‑Tronic D2.8L,D4.2L and D7.3L diesels).
37293T
TWO STATION "Y" HARNESS Fits MCM/MIE gasoline engines
ENGINE WATER TEMPERATURE SENDER

49734
For dual station installations, used for temperature gauge
Fits MCM/MIE engines
ENGINE OIL PRESSURE SENDER
84- 93347A 3
38 in.(96 cm) harness. Used with Ignition/Choke Assembly (84‑816626A 2), Start/
Stop Panel (76426A 7) and Remote Control Extension Harness (84‑17829A__
series).
Fits Mercury/Mariner outboards with 8 pin engine harnesses.
TWO STATION "Y" HARNESS

87-805268
ELECTRICAL For dual station installations
Fits 1994 and newer MCM/MIE Diesel engines

TWO STATION START/STOP PANELS

84-850782 Mounts in a 3‑3/8 in.(86 mm) hole.
Fits 1997‑2000 D2.8L and D4.2L Electronic models
TWO STATION START/STOP PANEL

76426A 9
3 ft.(910 mm) harness connects in place of ignition switch.
Fits MCM/MIE gasoline Carb engines (0W650000 and below).

610 2019 Quicksilver Precision Parts & Accessories Guide
