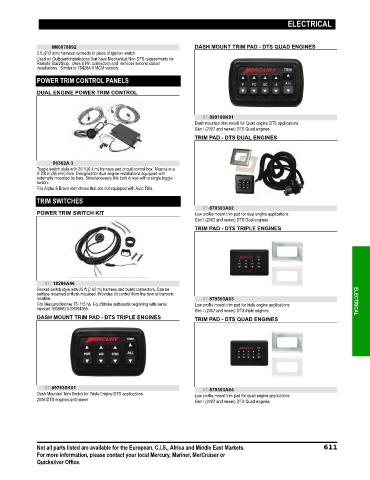

Page 618 - Quicksilver Accesories Guide 2019

ELECTRICAL

8M0078892 DASH MOUNT TRIM PAD - DTS QUAD ENGINES
3 ft.(910 mm) harness connects in place of ignition switch.
Used on Outboard installations that have Mechanical Non DTS requirements for
Remote Start/Stop. Uses 6 Pin connection and services second station
installations. Similar to 76426A 9 MCM version.
POWER TRIM CONTROL PANELS
DUAL ENGINE POWER TRIM CONTROL

87-899180K01
Dash mounted trim switch for Quad engine DTS applications
Gen I (2007 and newer) DTS Quad engines
TRIM PAD - DTS DUAL ENGINES

90362A 3
Toggle switch style with 20 ft.(6.1 m) harness and circuit control box. Mounts in a
3‑3/8 in.(86 mm) hole. Designed for dual engine installations equipped with
externally mounted tie bars. Simultaneously tilts both drives with a single toggle
switch.
Fits Alpha & Bravo sterndrives that are not equipped with Auto Trim.

TRIM SWITCHES
87-879303A02
POWER TRIM SWITCH KIT Low profile mount trim pad for dual engine applications
Gen1 (2007 and newer) DTS Dual engines
TRIM PAD - DTS TRIPLE ENGINES

87- 18286A46
Rocker switch style with 25 ft.(7.62 m) harness and bullet connectors. Can be
surface mounted or flush mounted. Provides tilt control from the bow or transom
location. 87-879303A03
Fits Mercury/Mariner 75‑115 hp. FourStroke outboards beginning with serial Low profile mount trim pad for triple engine applications ELECTRICAL
number 1B366823‑2B094955. Gen I (2007 and newer) DTS triple engines
DASH MOUNT TRIM PAD - DTS TRIPLE ENGINES TRIM PAD - DTS QUAD ENGINES

87-897635K01 87-879303A04
Dash Mounted Trim Switch for Triple Engine DTS applications Low profile mount trim pad for quad engine applications
2006 DTS engines and newer Gen I (2007 and newer) DTS Quad engines

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 611
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
