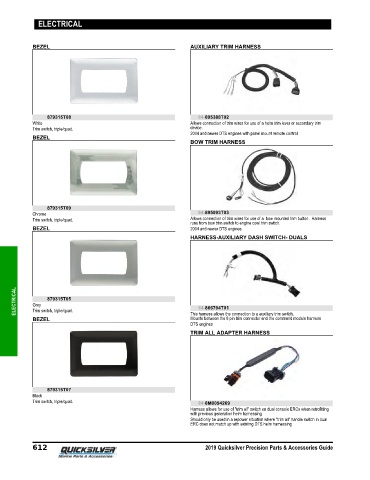

Page 619 - Quicksilver Accesories Guide 2019

ELECTRICAL

BEZEL AUXILIARY TRIM HARNESS

879315T08 84-895388T02
White Allows connection of trim wires for use of a helm trim lever or secondary trim
Trim switch, triple/quad. device.
2004 and newer DTS engines with panel mount remote control
BEZEL
BOW TRIM HARNESS

879315T09
Chrome 84-895093T03
Trim switch, triple/quad. Allows connection of trim wires for use of a bow mounted trim button. Harness
runs from bow trim switch to engine cowl trim switch.
BEZEL 2004 and newer DTS engines
HARNESS-AUXILIARY DASH SWITCH- DUALS

ELECTRICAL Grey 879315T05 84-866704T01

Trim switch, triple/quad.
Mounts between the 8 pin trim connector and the command module harness
BEZEL This harness allows the connection to a auxiliary trim switch.
DTS engines
TRIM ALL ADAPTER HARNESS

879315T07
Black
Trim switch, triple/quad. 84-8M0094269
Harness allows for use of "trim all" switch on dual console ERCs when retrofitting
with previous generation helm harnessing
Should only be used in a repower situation where "trim all" handle switch in dual
ERC does not match up with existing DTS helm harnessing

612 2019 Quicksilver Precision Parts & Accessories Guide
