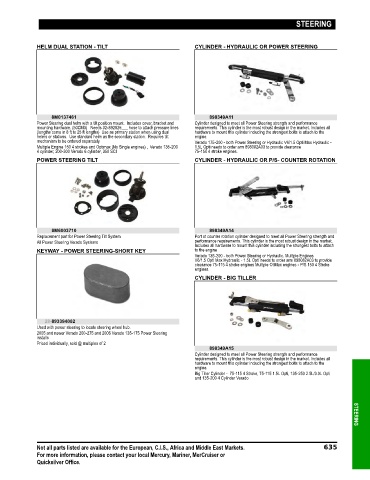

Page 642 - Quicksilver Accesories Guide 2019

STEERING

HELM DUAL STATION - TILT CYLINDER - HYDRAULIC OR POWER STEERING

8M0137461 898349A11
Power Steering dual helm with a tilt position mount. Includes cover, bracket and Cylinder designed to meet all Power Steering strength and performance
mounting hardware. (50CM3) Needs 32‑892825___ hose to attach pressure lines requirements. This cylinder is the most robust design in the market. Includes all
(lengths come in 8 ft to 25 ft lengths) Use as primary station when using dual hardware to mount this cylinder including the strongest bolts to attach to the
helms or stations. Use standard helm as the secondary station. Requires tilt engine.
mechanism to be ordered separately. Verado 175‑200 ‑ both Power Steering or Hydraulic V6/1.5 Opti Max Hydraulic ‑
Multiple Engine 150 4 strokes and Optimax (No Single engines) , Verado 135‑200 1.5L Opti needs to order arm 898082A03 to provide clearance
4 cylinder, 200‑300 Verado 6 cylinder, 350 SCI 75‑150 4 stroke engines.
POWER STEERING TILT CYLINDER - HYDRAULIC OR P/S- COUNTER ROTATION

8M6003710 898349A14
Replacement part for Power Steering Tilt System Port ot counter rotation cylinder designed to meet all Power Steering strength and
All Power Steering Verado Systems performance requirements. This cylinder is the most robust design in the market.
Includes all hardware to mount this cylinder including the strongest bolts to attach
KEYWAY - POWER STEERING-SHORT KEY to the engine
Verado 135‑200 ‑ both Power Steering or Hydraulic. Multiple Engines
V6/1.5 Opti Max Hydraulic ‑ 1.5L Opti needs to order arm 898082A03 to provide
clearance 75‑115 4 stroke engines Multiple OtiMax engines ‑ P/S 150 4 Stroke
engines.
CYLINDER - BIG TILLER

28-893394002
Used with power steering to locate steering wheel hub.
2005 and newer Verado 200‑275 and 2006 Verado 135‑175 Power Steering
installs
Priced individually, sold @ multiples of 2
898349A15
Cylinder designed to meet all Power Steering strength and performance
requirements. This cylinder is the most robust design in the market. Includes all
hardware to mount this cylinder including the strongest bolts to attach to the
engine.
Big Tiller Cylinder ‑ 75‑115 4 Stroke, 75‑115 1.5L Opti, 135‑250 2.5L/3.0L Opti
and 135‑200 4 Cylinder Verado

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 635 STEERING
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
