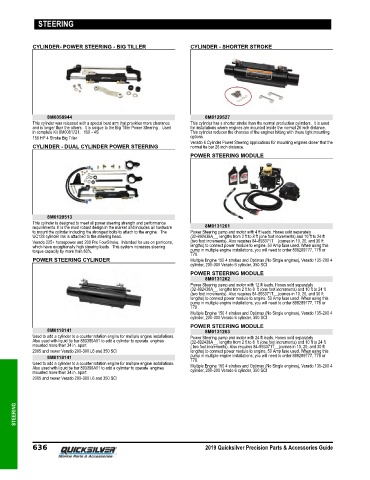

Page 643 - Quicksilver Accesories Guide 2019

STEERING

CYLINDER- POWER STEERING - BIG TILLER CYLINDER - SHORTER STROKE

8M0058944 8M0129527
This cylinder was released with a special bent arm that provides more clearance This cylinder has s shorter stroke than the normal production cylinders. It is used
and is longer than the others. It is unique to the Big Tiller Power Steering . Used for installations where engines are mounted inside the normal 26 inch distance.
in complete Kit 8M0061721. 150 ‑ 4S This cylinder reduces the chances of the engines hitting with these tight mounting
150 HP 4 Stroke Big Tiller options
Verado 6 Cylinder Power Steering applications for mounting engines closer that the
CYLINDER - DUAL CYLINDER POWER STEERING normal tie bar 26 inch distance.
POWER STEERING MODULE

8M0129513
This cylinder is designed to meet all power steering strength and performance
requirements. It is the most robust design in the market and includes all hardware 8M0131261
to mount the cylinder including the strongest bolts to attach to the engine. The Power Steering pump and motor with 4 ft leads. Hoses sold separately
UC128 cylinder link is attached to the steering head. (32‑892438A__, lengths from 2 ft to 8 ft (one foot increments) and 10 ft to 24 ft
Verado 225+ horsepower and 200 Pro FourStroke. Intended for use on pontoons, (two foot increments). Also requires 84‑893371T__(comes in 10, 20, and 30 ft
which have exceptionally high steering loads. This system increases steering lengths) to connect power module to engine. 50 Amp fuse used. When using this
torque capacity by more than 80%. pump in multiple engine installations, you will need to order 898289T77, T78 or
T79.
POWER STEERING CYLINDER Multiple Engine 150 4 strokes and Optimax (No Single engines), Verado 135‑200 4
cylinder, 200‑300 Verado 6 cylinder, 350 SCI
POWER STEERING MODULE
8M0131262
Power Steering pump and motor with 12 ft leads. Hoses sold separately
(32‑892438A__, lengths from 2 ft to 8 ft (one foot increments) and 10 ft to 24 ft
(two foot increments). Also requires 84‑893371T__(comes in 10, 20, and 30 ft
lengths) to connect power module to engine. 50 Amp fuse used. When using this
pump in multiple engine installations, you will need to order 898289T77, T78 or
T79 .
Multiple Engine 150 4 strokes and Optimax (No Single engines), Verado 135‑200 4
cylinder, 200‑300 Verado 6 cylinder, 350 SCI
POWER STEERING MODULE
8M0118141 8M0131263
Used to add a cylinder to a counter rotation engine for multiple engine installations. Power Steering pump and motor with 24 ft leads. Hoses sold separately
Also used with liquid tie bar 893396A01 to add a cylinder to operate engines (32‑892438A__, lengths from 2 ft to 8 ft (one foot increments) and 10 ft to 24 ft
mounted more than 34 in. apart ( two foot increments). Also requires 84‑893371T__(comes in 10, 20, and 30 ft
2005 and newer Verado 200‑300 L6 and 350 SCI lengths) to connect power module to engine. 50 Amp fuse used. When using this
8M0118141 pump in multiple engine installations, you will need to order 898289T77, T78 or
Used to add a cylinder to a counter rotation engine for multiple engine installations. T79.
Multiple Engine 150 4 strokes and Optimax (No Single engines), Verado 135‑200 4
Also used with liquid tie bar 893396A01 to add a cylinder to operate engines
mounted more than 34 in. apart cylinder, 200‑300 Verado 6 cylinder, 350 SCI
2005 and newer Verado 200‑300 L6 and 350 SCI

STEERING

636 2019 Quicksilver Precision Parts & Accessories Guide
