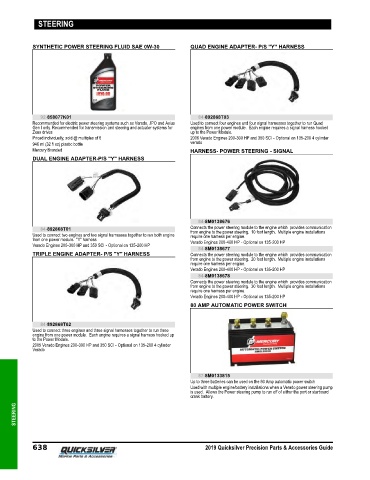

Page 645 - Quicksilver Accesories Guide 2019

STEERING

SYNTHETIC POWER STEERING FLUID SAE 0W-30 QUAD ENGINE ADAPTER- P/S "Y" HARNESS

92-858077K01 84-892868T03
Recommended for electric power steering systems such as Verado, JPO and Axius Used to connect four engines and four signal harnesses together to run Quad
Gen I only. Recommended for transmission and steering and actuator systems for engines from one power module. Each engine requires a signal harness hooked
Zeus drives up to the Power Module.
Priced individually, sold @ multiples of 6 2006 Verado Engines 200‑300 HP and 350 SCI ‑ Optional on 135‑200 4 cylinder
946 ml (32 fl oz) plastic bottle verado
Mercury Branded HARNESS- POWER STEERING - SIGNAL
DUAL ENGINE ADAPTER-P/S "Y" HARNESS

84-8M0138676
84-892868T01 Connects the power steering module to the engine which provides communication
Used to connect two engines and two signal harnesses together to run both engine from engine to the power steering. 10 foot length. Multiple engine installations
require one harness per engine.
from one power module. "Y" harness Verado Engines 200‑400 HP ‑ Optional on 135‑200 HP
Verado Engines 200‑300 HP and 350 SCI ‑ Optional on 135‑200 HP
84-8M0138677
TRIPLE ENGINE ADAPTER- P/S "Y" HARNESS Connects the power steering module to the engine which provides communication
from engine to the power steering. 20 foot length. Multiple engine installations
require one harness per engine.
Verado Engines 200‑400 HP ‑ Optional on 135‑200 HP
84-8M0138678
Connects the power steering module to the engine which provides communication
from engine to the power steering. 30 foot length. Multiple engine installations
require one harness per engine.
Verado Engines 200‑400 HP ‑ Optional on 135‑200 HP
80 AMP AUTOMATIC POWER SWITCH

84-892868T02
Used to connect three engines and three signal harnesses together to run three
engine from one power module. Each engine requires a signal harness hooked up
to the Power Module.
2005 Verado Engines 200‑300 HP and 350 SCI ‑ Optional on 135‑200 4 cylinder
Verado

87-8M0133815
Up to three batteries can be used on the 80 Amp automatic power switch
Used with multiple engine/battery installations when a Verado power steering pump
is used. Allows the Power steering pump to run off of either the port or starboard
crank battery.
