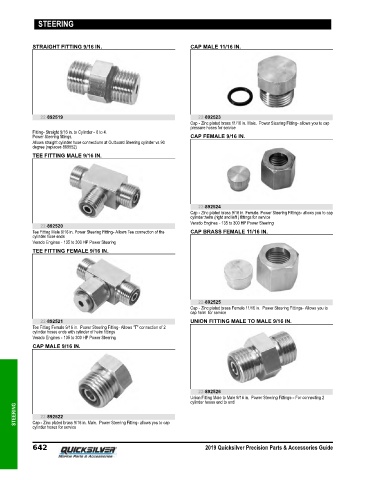

Page 649 - Quicksilver Accesories Guide 2019

STEERING

STRAIGHT FITTING 9/16 IN. CAP MALE 11/16 IN.

22-892519 22-892523
Cap ‑ Zinc plated brass 11/16 in. Male. Power Steering Fitting‑ allows you to cap
pressure hoses for service
Fitting‑ Straight 9/16 in. to Cylinder ‑ 6 to 4.
Power Steering fittings. CAP FEMALE 9/16 IN.
Allows straight cylinder hose connections at Outboard Steering cylinder vs 90
degree (replaces 889552)
TEE FITTING MALE 9/16 IN.

22-892524
Cap ‑ Zinc plated brass 9/16 in. Female. Power Steering Fittings‑ allows you to cap
cylinder:helm (right and left ) fittings for service
Verado Engines ‑ 135 to 300 HP Power Steering
22-892520
Tee Fitting Male 9/16 in. Power Steering Fitting‑ Allows Tee connection of the CAP BRASS FEMALE 11/16 IN.
cylinder hose ends
Verado Engines ‑ 135 to 300 HP Power Steering
TEE FITTING FEMALE 9/16 IN.

22-892525
Cap ‑ Zinc plated brass Female 11/16 in. Power Steering Fittings‑ Allows you to
cap helm for service
22-892521 UNION FITTING MALE TO MALE 9/16 IN.
Tee Fitting Female 9/16 in. Power Steering Fitting‑ Allows "T" connection of 2
cylinder hoses ends with cylinder of helm fittings
Verado Engines ‑ 135 to 300 HP Power Steering
CAP MALE 9/16 IN.

22-892526
Union Fitting Male to Male 9/16 in. Power Steering Fittings‑‑ For connecting 2
cylinder hoses end to end
STEERING 22-892522

Cap ‑ Zinc plated brass 9/16 in. Male. Power Steering Fitting‑ allows you to cap
cylinder hoses for service

642 2019 Quicksilver Precision Parts & Accessories Guide
