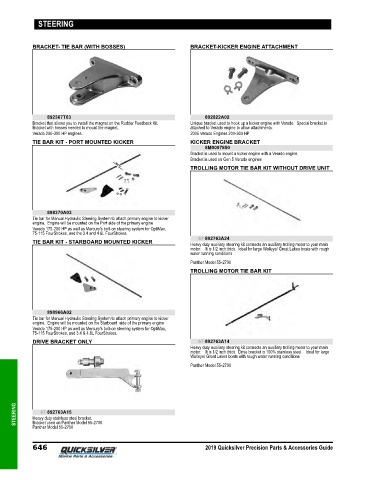

Page 653 - Quicksilver Accesories Guide 2019

STEERING

BRACKET- TIE BAR (WITH BOSSES) BRACKET-KICKER ENGINE ATTACHMENT

892367T03 892822A02
Bracket that allows you to install the magnet on the Rudder Feedback Kit. Unique bracket used to hook up a kicker engine with Verado. Special bracket is
Bracket with bosses needed to mount the magnet. attached to Verado engine to allow attachments.
Verado 200‑300 HP engines. 2005 Verado Engines 200‑300 HP
TIE BAR KIT - PORT MOUNTED KICKER KICKER ENGINE BRACKET
8M0097850
Bracket is used to mount a kicker engine with a Verado engine.
Bracket is used on Gen 5 Verado engines
TROLLING MOTOR TIE BAR KIT WITHOUT DRIVE UNIT

898370A03
Tie bar for Manual Hydraulic Steering System to attach primary engine to kicker
engine. Engine will be mounted on the Port side of the primary engine
Verado 175‑200 HP as well as Mercury's bolt‑on steering system for OptiMax,
75‑115 FourStrokes, and the 3.4 and 4.6L FourStrokes.
67-892763A24
TIE BAR KIT - STARBOARD MOUNTED KICKER
Heavy duty auxiliary steering kit connects an auxiliary trolling motor to your main
motor. It is 1/2 inch thick. Ideal for large Walleye/ Great Lakes boats with rough
water running conditions
Panther Model 55‑2700
TROLLING MOTOR TIE BAR KIT

898966A02
Tie bar for Manual Hydraulic Steering System to attach primary engine to kicker
engine. Engine will be mounted on the Starboard side of the primary engine
Verado 175‑200 HP as well as Mercury's bolt‑on steering system for OptiMax,
75‑115 FourStrokes, and 3.4 & 4.6L FourStrokes.
DRIVE BRACKET ONLY 67-892763A14
Heavy duty auxiliary steering kit connects an auxiliary trolling motor to your main
motor. It is 1/2 inch thick. Drive bracket is 100% stainless steel. Ideal for large
Walleye/ Great Lakes boats with rough water running conditions
Panther Model 55‑2700

STEERING Heavy duty stainless steel bracket.
67-892763A15

Bracket used on Panther Model 55‑2700
Panther Model 55‑2750

646 2019 Quicksilver Precision Parts & Accessories Guide
