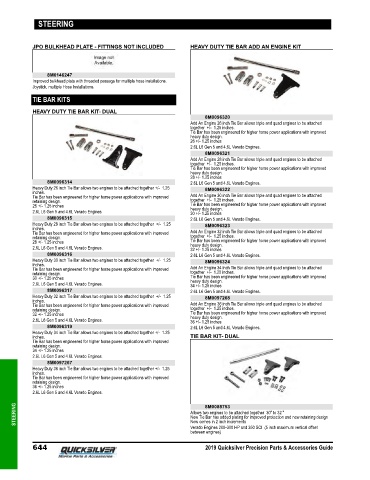

Page 651 - Quicksilver Accesories Guide 2019

STEERING

JPO BULKHEAD PLATE - FITTINGS NOT INCLUDED HEAVY DUTY TIE BAR ADD AN ENGINE KIT

8M0146247
Improved bulkhead plate with threaded passage for multiple hose installations.
Joystick, multiple Hose Installations.

TIE BAR KITS
HEAVY DUTY TIE BAR KIT- DUAL
8M0096320
Add An Engine 26 inch Tie Bar allows triple and quad engines to be attached
together +/‑ 1.25 inches.
Tie Bar has been engineered for higher horse power applications with improved
heavy duty design.
26 +/‑ 1.25 inches
2.6L L6 Gen 5 and 4.6L Verado Engines.
8M0096321
Add An Engine 28 inch Tie Bar allows triple and quad engines to be attached
together +/‑ 1.25 inches.
Tie Bar has been engineered for higher horse power applications with improved
heavy duty design.
28 +/‑ 1.25 inches
8M0096314 2.6L L6 Gen 5 and 4.6L Verado Engines.
Heavy Duty 26 inch Tie Bar allows two engines to be attached together +/‑ 1.25 8M0096322
inches.
Tie Bar has been engineered for higher horse power applications with improved Add An Engine 30 inch Tie Bar allows triple and quad engines to be attached
retaining design. together +/‑ 1.25 inches.
26 +/‑ 1.25 inches Tie Bar has been engineered for higher horse power applications with improved
heavy duty design.
2.6L L6 Gen 5 and 4.6L Verado Engines 30 +/‑ 1.25 inches
8M0096315 2.6L L6 Gen 5 and 4.6L Verado Engines.
Heavy Duty 28 inch Tie Bar allows two engines to be attached together +/‑ 1.25 8M0096323
inches.
Tie Bar has been engineered for higher horse power applications with improved Add An Engine 32 inch Tie Bar allows triple and quad engines to be attached
retaining design. together +/‑ 1.25 inches.
28 +/‑ 1.25 inches Tie Bar has been engineered for higher horse power applications with improved
2.6L L6 Gen 5 and 4.6L Verado Engines. heavy duty design.
32 +/‑ 1.25 inches
8M0096316 2.6L L6 Gen 5 and 4.6L Verado Engines.
Heavy Duty 30 inch Tie Bar allows two engines to be attached together +/‑ 1.25 8M0096324
inches.
Tie Bar has been engineered for higher horse power applications with improved Add An Engine 34 inch Tie Bar allows triple and quad engines to be attached
retaining design. together +/‑ 1.25 inches.
30 +/‑ 1.25 inches Tie Bar has been engineered for higher horse power applications with improved
heavy duty design.
2.6L L6 Gen 5 and 4.6L Verado Engines. 34 +/‑ 1.25 inches
8M0096317 2.6L L6 Gen 5 and 4.6L Verado Engines.
Heavy Duty 32 inch Tie Bar allows two engines to be attached together +/‑ 1.25 8M0097268
inches.
Tie Bar has been engineered for higher horse power applications with improved Add An Engine 36 inch Tie Bar allows triple and quad engines to be attached
retaining design. together +/‑ 1.25 inches.
32 +/‑ 1.25 inches Tie Bar has been engineered for higher horse power applications with improved
heavy duty design.
2.6L L6 Gen 5 and 4.6L Verado Engines. 36 +/‑ 1.25 inches
8M0096319 2.6L L6 Gen 5 and 4.6L Verado Engines.
Heavy Duty 34 inch Tie Bar allows two engines to be attached together +/‑ 1.25
inches. TIE BAR KIT- DUAL
Tie Bar has been engineered for higher horse power applications with improved
retaining design.
34 +/‑ 1.25 inches
2.6L L6 Gen 5 and 4.6L Verado Engines.
8M0097267
Heavy Duty 36 inch Tie Bar allows two engines to be attached together +/‑ 1.25
inches.
Tie Bar has been engineered for higher horse power applications with improved
retaining design.
36 +/‑ 1.25 inches
2.6L L6 Gen 5 and 4.6L Verado Engines.
STEERING Allows two engines to be attached together 30" to 32 "
8M0088753
New Tie Bar has added plating for improved protection and new retaining design
Now comes in 2 inch increments
Verado Engines 200‑300 HP and 350 SCI (5 inch maximum vertical offset
between engines)
