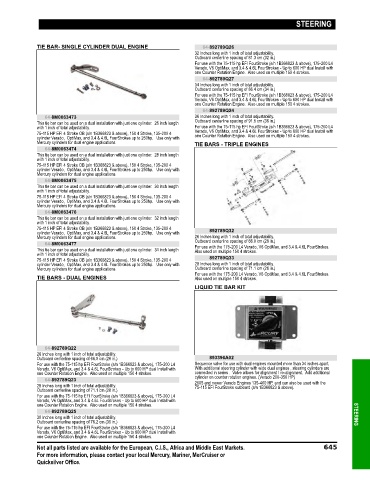

Page 652 - Quicksilver Accesories Guide 2019

STEERING

TIE BAR- SINGLE CYLINDER DUAL ENGINE 64-892789Q26
32 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 81.3 cm (32 in.)
For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-892789Q27
34 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 86.4 cm (34 in.)
For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-892789Q24
64-8M0063473 36 Inches long with 1 inch of total adjustability.
This tie bar can be used on a dual installation with just one cylinder. 26 inch length Outboard centerline spacing of 91.5 cm (36 in.)
with 1 inch of total adjustability. For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4 Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
one Counter Rotation Engine. Also used on multiple 150 4 strokes.
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with
Mercury cylinders for dual engine applications TIE BARS - TRIPLE ENGINES
64-8M0063474
This tie bar can be used on a dual installation with just one cylinder. 28 inch length
with 1 inch of total adjustability.
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with
Mercury cylinders for dual engine applications.
64-8M0063475
This tie bar can be used on a dual installation with just one cylinder. 30 inch length
with 1 inch of total adjustability.
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with
Mercury cylinders for dual engine applications.
64-8M0063476
This tie bar can be used on a dual installation with just one cylinder. 32 inch length
with 1 inch of total adjustability.
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4 892789Q32
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with
Mercury cylinders for dual engine applications. 26 Inches long with 1 inch of total adjustability.
64-8M0063477 Outboard centerline spacing of 66.0 cm (26 in.)
This tie bar can be used on a dual installation with just one cylinder. 34 inch length For use with the 175‑200 L4 Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes.
Also used on multiple 150 4 strokes.
with 1 inch of total adjustability.
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4 892789Q33
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with 28 Inches long with 1 inch of total adjustability.
Mercury cylinders for dual engine applications. Outboard centerline spacing of 71.1 cm (28 in.)
For use with the 175‑200 L4 Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes.
TIE BARS - DUAL ENGINES Also used on multiple 150 4 strokes.
LIQUID TIE BAR KIT

64-892789Q22
26 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 66.0 cm (26 in.) 893396A02
For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4 Sequence valve for use with dual engines mounted more than 34 inches apart.
Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with With additional steering cylinder with wide dual engines , steering cylinders are
one Counter Rotation Engine. Also used on multiple 150 4 strokes. connected in series . Valve allows for alignment / re‑alignment. Add additional
64-892789Q23 cylinder on counter rotation engines. (Verado 200‑350 HP)
28 Inches long with 1 inch of total adjustability. 2005 and newer Verado Engines 135‑400 HP, and can also be used with the
75‑115 EFI FourStroke outboard (s/n 1B366823 & above).
Outboard centerline spacing of 71.1 cm (28 in.)
For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-892789Q25
30 Inches long with 1 inch of total adjustability. STEERING
Outboard centerline spacing of 76.2 cm (30 in.)
For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
one Counter Rotation Engine. Also used on multiple 150 4 strokes.
Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 645
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
