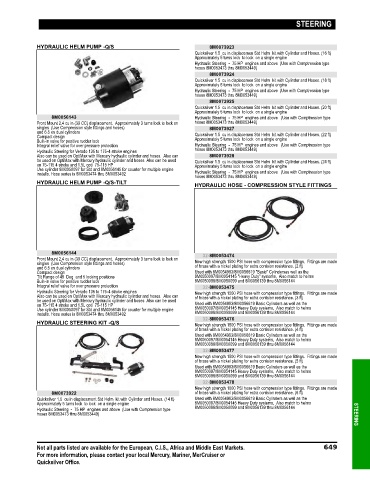

Page 656 - Quicksilver Accesories Guide 2019

STEERING

HYDRAULIC HELM PUMP -Q/S 8M0073923
Quicksilver 1.5 cu in displacemen Std Helm kit with Cylinder and Hoses. (16 ft)
Approximately 5 turns lock to lock on a single engine
Hydraulic Steering ‑ 75 HP engines and above (Use with Comptression type
hoses 8M0053473 thru 8M0053449)
8M0073924
Quicksilver 1.5 cu in displacemen Std Helm kit with Cylinder and Hoses. (18 ft)
Approximately 5 turns lock to lock on a single engine
Hydraulic Steering ‑ 75 HP engines and above (Use with Comptression type
hoses 8M0053473 thru 8M0053449)
8M0073925
Quicksilver 1.5 cu in displacemen Std Helm kit with Cylinder and Hoses. (20 ft)
Approximately 5 turns lock to lock on a single engine
8M0056143 Hydraulic Steering ‑ 75 HP engines and above (Use with Comptression type
Front Mount 2.4 cu in (39 CC) displacement. Approximately 3 turns lock to lock on hoses 8M0053473 thru 8M0053449)
singles (Use Compression style fittings and hoses) 8M0073927
and 6.5 on dual cylinders Quicksilver 1.5 cu in displacemen Std Helm kit with Cylinder and Hoses. (22 ft)
Compact design
Built‑in valve for positive rudder lock Approximately 5 turns lock to lock on a single engine
Integral relief valve for over pressure protection Hydraulic Steering ‑ 75 HP engines and above (Use with Comptression type
Hydraulic Steering for Verado 135 to 175‑4 stroke engines hoses 8M0053473 thru 8M0053449)
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses. Also can 8M0073928
be used on OptiMax with Mercury hydraulic cylinder and hoses Also can be used Quicksilver 1.5 cu in displacemen Std Helm kit with Cylinder and Hoses. (24 ft)
on 75‑115 4 stroke and 1.5L opti 75‑115 HP Approximately 5 turns lock to lock on a single engine
Use cylinder 8M0050097 for Std and 8M0056145 for counter for multiple engine
installs. Hose series is 8M0053474 thru 8M0053492 Hydraulic Steering ‑ 75 HP engines and above (Use with Comptression type
hoses 8M0053473 thru 8M0053449)
HYDRAULIC HELM PUMP -Q/S-TILT
HYDRAULIC HOSE - COMPRESSION STYLE FITTINGS

8M0056144 32-8M0053474
Front Mount 2.4 cu in (39 CC) displacement. Approximately 3 turns lock to lock on
singles (Use Compression style fittings and hoses) New high strength 1500 PSI hose with compression type fittings. Fittings are made
and 6.5 on dual cylinders of brass with a nickel plating for extra corrision resistance. (2 ft)
Compact design Used with 8M0054993/8M0056619 "Basic" Cylindersas well as the
Tilt Range of 48 Deg and 5 locking positions 8M0050097/8M0054145 "Heavy Duty" systems, Also match to helms
Built‑in valve for positive rudder lock 8M0050098/8M0050099 and 8M0056139 thru 8M0056144
Integral relief valve for over pressure protection 32-8M0053475
Hydraulic Steering for Verado 135 to 175‑4 stroke engines New high strength 1500 PSI hose with compression type fittings. Fittings are made
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses. Also can of brass with a nickel plating for extra corrision resistance. (3 ft)
be used on OptiMax with Mercury hydraulic cylinder and hoses Also can be used
on 75‑115 4 stroke and 1.5L opti 75‑115 HP Used with 8M0054993/8M0056619 Basic Cylinders as well as the
Use cylinder 8M0050097 for Std and 8M0056145 for counter for multiple engine 8M0050097/8M0054145 Heavy Duty systems, Also match to helms
installs. Hose series is 8M0053474 thru 8M0053492 8M0050098/8M0050099 and 8M0056139 thru 8M0056144
32-8M0053476
HYDRAULIC STEERING KIT -Q/S New high strength 1500 PSI hose with compression type fittings. Fittings are made
of brass with a nickel plating for extra corrision resistance. (4 ft)
Used with 8M0054993/8M0056619 Basic Cylinders as well as the
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144
32-8M0053477
New high strength 1500 PSI hose with compression type fittings. Fittings are made
of brass with a nickel plating for extra corrision resistance. (5 ft)
Used with 8M0054993/8M0056619 Basic Cylinders as well as the
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144
32-8M0053478
New high strength 1500 PSI hose with compression type fittings. Fittings are made
8M0073922 of brass with a nickel plating for extra corrision resistance. (6 ft)
Quicksilver 1.5 cu in displacement Std Helm kit with Cylinder and Hoses. (14 ft) Used with 8M0054993/8M0056619 Basic Cylinders as well as the
Approximately 5 turns lock to lock on a single engine 8M0050097/8M0054145 Heavy Duty systems, Also match to helms
Hydraulic Steering ‑ 75 HP engines and above (Use with Compression type 8M0050098/8M0050099 and 8M0056139 thru 8M0056144
hoses 8M0053473 thru 8M0053449) STEERING

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 649
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
