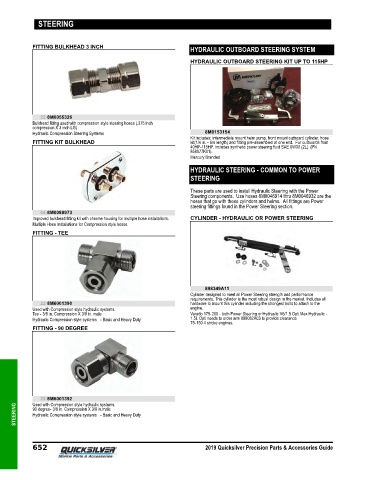

Page 659 - Quicksilver Accesories Guide 2019

STEERING

FITTING BULKHEAD 3 INCH
HYDRAULIC OUTBOARD STEERING SYSTEM
HYDRAULIC OUTBOARD STEERING KIT UP TO 115HP

22-8M0055326
Bulkhead fitting used with compression style steering hoses (.375 inch
compression X 3 inch LG)
Hydraulic Compression Steering Systems 8M0153154
Kit includes: Intermediate mount helm pump, front mount outboard cylinder, hose
FITTING KIT BULKHEAD kit(1/4 in. ‑ 6m length) and fitting pre‑assembled at one end. For outboards from
40HP‑115HP. Includes synthetic power steering fluid SAE 0W30 (2L) (PN
858077K01).
Mercury Branded
HYDRAULIC STEERING - COMMON TO POWER
STEERING

These parts are used to install Hydraulic Steering with the Power
Steering components. Use hoses 8M0046914 thru 8M0046932 are the
hoses that go with these cylinders and helms. All fittings are Power
steering fittings found in the Power Steering section.
64-8M0088973
Improved bulkhead fitting kit with chrome housing for multiple hose installations. CYLINDER - HYDRAULIC OR POWER STEERING
Multiple Hose Installations for Compression style hoses.
FITTING - TEE

898349A11
Cylinder designed to meet all Power Steering strength and performance
requirements. This cylinder is the most robust design in the market. Includes all
22-8M6001390 hardware to mount this cylinder including the strongest bolts to attach to the
Used with Compression style hydraulic systems. engine.
Tee ‑ 3/8 in. Compression X 3/8 in. male Verado 175‑200 ‑ both Power Steering or Hydraulic V6/1.5 Opti Max Hydraulic ‑
Hydraulic Compression style systems ‑ Basic and Heavy Duty 1.5L Opti needs to order arm 898082A03 to provide clearance
75‑150 4 stroke engines.
FITTING - 90 DEGREE

22-8M6001392
Used with Compression style hydraulic systems.
STEERING 90 degree‑ 3/8 in. Compression X 3/8 in.male
Hydraulic Compression style systems ‑ Basic and Heavy Duty

652 2019 Quicksilver Precision Parts & Accessories Guide
