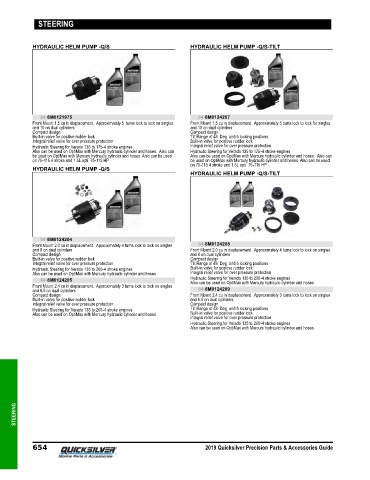

Page 661 - Quicksilver Accesories Guide 2019

STEERING

HYDRAULIC HELM PUMP -Q/S HYDRAULIC HELM PUMP -Q/S-TILT

64-8M0121975 64-8M0124207
Front Mount 1.5 cu in displacement. Approximately 5 turns lock to lock on singles Front Mount 1.5 cu in displacement. Approximately 5 turns lock to lock for singles
and 10 on dual cylinders and 10 on dual cylinders
Compact design Compact design
Built‑in valve for positive rudder lock Tilt Range of 48 Deg and 5 locking positions
Integral relief valve for over pressure protection Built‑in valve for positive rudder lock
Hydraulic Steering for Verado 135 to 175‑4 stroke engines Integral relief valve for over pressure protection
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses. Also can Hydraulic Steering for Verado 135 to 175‑4 stroke engines
be used on OptiMax with Mercury hydraulic cylinder and hoses Also can be used Also can be used on OptiMax with Mercury hydraulic cylinder and hoses. Also can
on 75‑115 4 stroke and 1.5L opti 75‑115 HP be used on OptiMax with Mercury hydraulic cylinder and hoses Also can be used
on 75‑115 4 stroke and 1.5L opti 75‑115 HP
HYDRAULIC HELM PUMP -Q/S
HYDRAULIC HELM PUMP -Q/S-TILT

64-8M0124204
Front Mount 2.0 cu in displacement. Approximately 4 turns lock to lock on singles 64-8M0124208
and 8 on dual cylinders Front Mount 2.0 cu in displacement. Approximately 4 turns lock to lock on singles
Compact design and 8 on dual cylinders
Built‑in valve for positive rudder lock Compact design
Integral relief valve for over pressure protection Tilt Range of 48 Deg and 5 locking positions
Hydraulic Steering for Verado 135 to 200‑4 stroke engines Built‑in valve for positive rudder lock
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses Integral relief valve for over pressure protection
64-8M0124205 Hydraulic Steering for Verado 135 to 200‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses
Front Mount 2.4 cu in displacement. Approximately 3 turns lock to lock on singles
and 6.5 on dual cylinders 64-8M0124209
Compact design Front Mount 2.4 cu in displacement. Approximately 3 turns lock to lock on singles
Built‑in valve for positive rudder lock and 6.5 on dual cylinders
Integral relief valve for over pressure protection Compact design
Hydraulic Steering for Verado 135 to 200‑4 stroke engines Tilt Range of 48 Deg and 5 locking positions
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses Built‑in valve for positive rudder lock
Integral relief valve for over pressure protection
Hydraulic Steering for Verado 135 to 200‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses

STEERING

654 2019 Quicksilver Precision Parts & Accessories Guide
