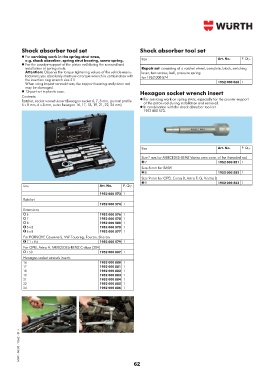

Shock absorber tool set Shock absorber tool set
For servicing work in the spring strut area,
e.g. shock absorber, spring strut bearing, screw spring. Size Art. No. P. Qty.
For the counter-support of the piston rod during the removal and
installation of spring struts. Repair set consisting of a ratchet wheel, complete, block, switching
Attention: Observe the torque tightening values of the vehicle manu- lever, two screws, ball, pressure spring
facturers; you absolutely must use a torque wrench in combination with for 1952 000 574
the insertion ring wrench size 21!
When using impact screwdrivers, the support bearing and piston rod 1952 000 068 1
may be damaged.
13-part set in plastic case. Hexagon socket wrench insert
Contents:
Ratchet, socket wrench insert (hexagon socket 6, 7, 8 mm, journal profile For servicing work on spring struts, especially for the counter-support
5 x 8 mm, 6 x 8 mm, outer hexagon 16, 17, 18, 19, 21, 22, 24 mm) of the piston rod during installation and removal.
In combination with the shock absorber tool set
1952 000 573.

Size Art. No. P. Qty.

Size7 mm for MERCEDES-BENZ Vaneo srew conn. of the threaded rod
c 7 1952 000 581 1
Size 8 mm for BMW
c 8 1952 000 582 1
Size 9 mm for OPEL Corsa B, Astra F, G, Vectra B
c 9 1952 000 583 1
Size Art. No. P. Qty.
1952 000 573 1
Ratchet
1952 000 574 1
Extensions
b 6 1952 000 576 1
b 7 1952 000 578 1
b 8 1952 000 580 1
Y 5 x 8 1952 000 575 1
Y 6 x 8 1952 000 577 1
For PORSCHE Cayenne S, VW Touareg, Touran, Sharan
Y 7.1 x 9.6 1952 000 579 1
For OPEL Astra H, MERCEDES-BENZ C-class (204)
N T 50 1952 000 887 1
Hexagon socket wrench inserts
16 1952 000 880 1
17 1952 000 881 1
18 1952 000 882 1
19 1952 000 883 1
21 1952 000 884 1
22 1952 000 885 1
24 1952 000 886 1

MWF - 06/08 - 11562 - © •

62
