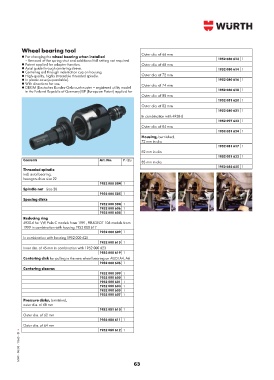

Wheel bearing tool
Outer dia. of 66 mm
For changing the wheel bearing when installed
– Removal of the spring strut and additional fall setting not required 1952 080 613 1
Patent applied for adapter function. Outer dia. of 68 mm
Axial guide through centering sleeve. 1952 080 614 1
Centering aid through indentation cup on housing.
High-quality, highly stressable threaded spindle. Outer dia. of 72 mm
In plastic case (expandable). 1952 080 616 1
With directions for use. Outer dia. of 74 mm
DBGM (Deutsches Bundes-Gebrauchmuster = registered utility model
in the Federal Republic of Germany)/EP (European Patent) applied for 1952 080 618 1
Outer dia. of 80 mm
1952 081 620 1
Outer dia. of 82 mm
1952 080 621 1
In combination with 4930-8
1952 097 623 1
Outer dia. of 84 mm
1952 081 624 1
Housing, burnished,
72 mm in dia.
1952 081 617 1
82 mm in dia.
1952 081 622 1
Contents Art. No. P. Qty.
85 mm in dia.
1952 082 625 1
Threaded spindle
incl. axial bearing,
hexagon drive size 22
1952 000 584 1
Spindle nut Size 30
1952 000 585 1
Spacing disks
1952 000 594 1
1952 000 606 1
1952 000 608 1
Reducing ring
4930-6 for VW Polo C models from 1991, PEUGEOT 106 models from
1999 in combination with housing 1952 000 617
1952 000 609 1
In combination with housing 1952 000 625
1952 000 615 1
Inner dia. of 45 mm in combination with 1952 000 623
1952 000 619 1
Centering disk for pulling in the new wheel bearing on AUDI A4, A6
1952 000 626 1
Centering sleeves
1952 000 599 1
1952 000 600 1
1952 000 601 1
1952 000 603 1
1952 000 605 1
1952 000 607 1
Pressure disks, burnished,
outer dia. of 60 mm
1952 081 610 1
Outer dia. of 62 mm
1952 080 611 1
Outer dia. of 64 mm 1952 080 612 1
