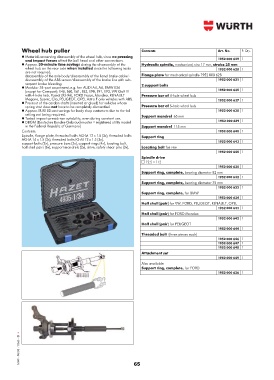

Wheel hub puller Contents Art. No. P. Qty.
Material-conserving disassembly of the wheel hub, since no pressing
and impact forces affect the ball head and other connections. 1952 000 629 1
Approx. 30-minute time savings during the disassembly of the Hydraulic spindle, mechanical, size 17 mm, stroke 35 mm
wheel hub on the rear axle when installed since the following tasks 1952 000 628 1
are not required:
disassembly of the axle body/disassembly of the hand brake cable/ - Flange plate for mechanical spindle 1952 000 628
disassembly of the ABS sensor/disassembly of the brake line with sub- 1952 000 631 1
sequent brake bleeding. 2 support bolts
Modular 34-part assortment, e.g. for: AUDI A4, A6, BMW E36
(except for Compact), E46, E60, E61, E83, E90, E91, E93, VW Golf III 1952 000 635 1
with 4-hole hub, Passat (93-96), FORD Focus, Mondeo, RENAULT Pressure bar of 4-hole wheel hub
Megane, Scenic, Clio, PEUGEOT, OPEL Astra F only vehicles with ABS. 1952 000 637 1
Pressout of the cardan shafts (inserted or glued) for vehicles whose
spring strut does not have to be completely dismantled. Pressure bar of 5-hole wheel hub
Approx. EUR100 cost savings for body shop customers due to the fall 1952 000 638 1
setting not being required. Support mandrel 65 mm
Tested impact screwdriver suitability, even during constant use.
DBGM (Deutsches Bundes-Gebrauchmuster = registered utility model 1952 000 639 1
in the Federal Republic of Germany) Support mandrel 115 mm
Contents: 1952 000 640 1
Spindle, flange plate, threaded bolts AG-M 12 x 1.5 (3x), threaded bolts Support ring
AG-M 14 x 1.5 (3x), threaded bolts IG-M 12 x 1.5 (3x),
support bolts (2x), pressure bars (2x), support rings (4x), locating bolt, 1952 000 643 1
half shell pairs (6x), support mandrels (2x), drive, safety shear pins (3x). Locating bolt for vise
1952 000 645 1
Spindle drive
j 12.5 = 1/2
1952 000 630 1
Support ring, complete, bearing diameter 82 mm
1952 000 632 1
Support ring, complete, bearing diameter 75 mm
1952 000 633 1
Support ring, complete, for BMW
1952 000 634 1
Half shell (pair) for VW, FORD, PEUGEOT, RENAULT, OPEL
1952 000 641 1
Half shell (pair) for FORD Mondeo
1952 000 642 1
Half shell (pair) for PEUGEOT
1952 000 644 1
Threaded bolt (three pieces each)
1952 000 646 1
1952 000 647 1
1952 000 648 1
Attachment set
1952 000 649 1
Also available:
Support ring, complete, for FORD
1952 000 636 1
