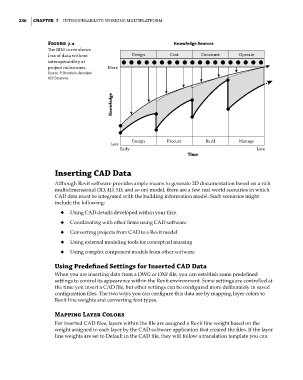

230 | ChaptEr 7 InteroperabIlIty: WorkIng MultIplatforM

Figure 7.1 Knowledge Sources
The bIM curve shows
loss of data without Design Cost Construct Operate
interoperability at
project milestones. More
Source: P. Bernstein, Autodesk
AEC Solutions

Knowledge

Design Procure Build Manage
Less
Early Late
Time

Inserting CaD Data

Although Revit software provides ample means to generate 2D documentation based on a rich
multidimensional (3D, 4D, 5D, and so on) model, there are a few real-world scenarios in which
CAD data must be integrated with the building information model. Such scenarios might
include the following:
◆ ◆ Using CAD details developed within your firm
◆ ◆ Coordinating with other firms using CAD software
◆ ◆ Converting projects from CAD to a Revit model

◆ ◆ Using external modeling tools for conceptual massing
◆ ◆ Using complex component models from other software

Using predefined Settings for Inserted CaD Data
When you are inserting data from a DWG or DXF file, you can establish some predefined
settings to control its appearance within the Revit environment. Some settings are controlled at
the time you insert a CAD file, but other settings can be configured more deliberately in saved
configuration files. The two ways you can configure this data are by mapping layer colors to
Revit line weights and converting font types.

Mapping Layer Colors
For inserted CAD files, layers within the file are assigned a Revit line weight based on the
weight assigned to each layer by the CAD software application that created the files. If the layer
line weights are set to Default in the CAD file, they will follow a translation template you can
