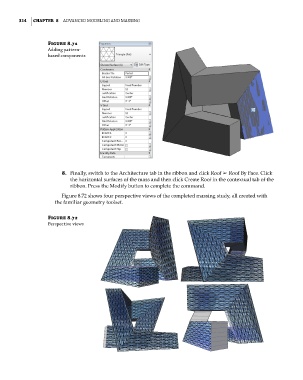

314 | ChAPter 8 AdvAnced Modeling And MAssing
Figure 8.71
Adding pattern-
based components
8. Finally, switch to the Architecture tab in the ribbon and click Roof ➢ Roof By Face. Click
the horizontal surfaces of the mass and then click Create Roof in the contextual tab of the
ribbon. Press the Modify button to complete the command.
Figure 8.72 shows four perspective views of the completed massing study, all created with
the familiar geometry toolset.
Figure 8.72
Perspective views
