creATing forMUlA-driven MAssing 311

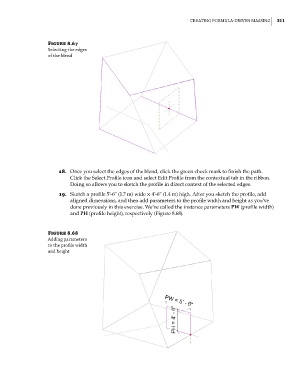

Figure 8.67
selecting the edges
of the blend
18. Once you select the edges of the blend, click the green check mark to finish the path.
Click the Select Profile icon and select Edit Profile from the contextual tab in the ribbon.
Doing so allows you to sketch the profile in direct context of the selected edges.
19. Sketch a profile 5’-6” (1.7 m) wide × 4’-6” (1.4 m) high. After you sketch the profile, add
aligned dimensions, and then add parameters to the profile width and height as you’ve
done previously in this exercise. We’ve called the instance parameters PW (profile width)
and PH (profile height), respectively (Figure 8.68).
Figure 8.68
Adding parameters
to the profile width
and height
