388 | ChaPter 10 Working With Phasing, grouPs, and design oPtions

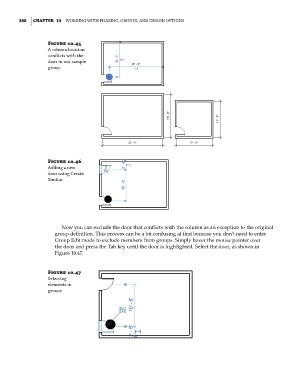

Figure 10.45
a column location
conflicts with the
door in our sample
group.

Figure 10.46
adding a new
door using Create
similar

Now you can exclude the door that conflicts with the column as an exception to the original
group definition. This process can be a bit confusing at first because you don’t need to enter
Group Edit mode to exclude members from groups. Simply hover the mouse pointer over
the door and press the Tab key until the door is highlighted. Select the door, as shown in
Figure 10.47.

Figure 10.47
selecting
elements in
groups
