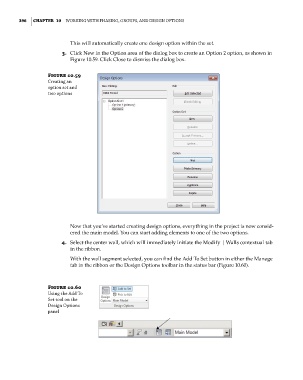

396 | ChaPter 10 Working With Phasing, grouPs, and design oPtions

This will automatically create one design option within the set.
3. Click New in the Option area of the dialog box to create an Option 2 option, as shown in
Figure 10.59. Click Close to dismiss the dialog box.

Figure 10.59
Creating an
option set and
two options

Now that you’ve started creating design options, everything in the project is now consid-
ered the main model. You can start adding elements to one of the two options.
4. Select the center wall, which will immediately initiate the Modify | Walls contextual tab
in the ribbon.
With the wall segment selected, you can find the Add To Set button in either the Manage
tab in the ribbon or the Design Options toolbar in the status bar (Figure 10.60).

Figure 10.60
using the add to
set tool on the
design options
panel

c10.indd 396 5/3/2014 11:04:58 AM
