400 | ChaPter 10 Working With Phasing, grouPs, and design oPtions

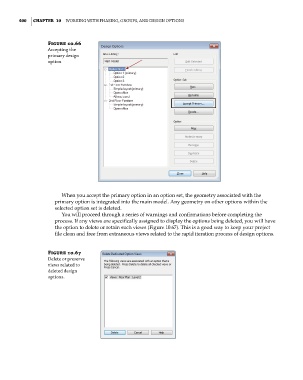

Figure 10.66
accepting the
primary design
option
When you accept the primary option in an option set, the geometry associated with the
primary option is integrated into the main model. Any geometry on other options within the
selected option set is deleted.
You will proceed through a series of warnings and confirmations before completing the
process. If any views are specifically assigned to display the options being deleted, you will have
the option to delete or retain such views (Figure 10.67). This is a good way to keep your project
file clean and free from extraneous views related to the rapid iteration process of design options.
Figure 10.67
delete or preserve
views related to
deleted design
options.
