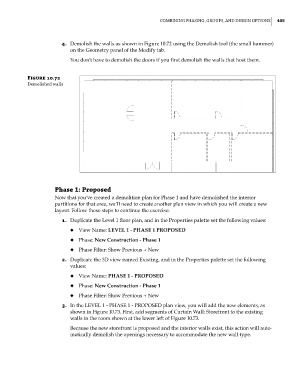

CoMBining Phasing, grouPs, and design oPtions 405

4. Demolish the walls as shown in Figure 10.72 using the Demolish tool (the small hammer)
on the Geometry panel of the Modify tab.

You don’t have to demolish the doors if you first demolish the walls that host them.

Figure 10.72
demolished walls

Phase 1: Proposed
Now that you’ve created a demolition plan for Phase 1 and have demolished the interior
partitions for that area, we’ll need to create another plan view in which you will create a new
layout. Follow these steps to continue the exercise:
1. Duplicate the Level 1 floor plan, and in the Properties palette set the following values:
◆ ◆ View Name: LEVEL 1 - PHASE 1 PROPOSED
◆ ◆ Phase: New Construction - Phase 1
◆ ◆ Phase Filter: Show Previous + New
2. Duplicate the 3D view named Existing, and in the Properties palette set the following
values:
◆ ◆ View Name: PHASE 1 - PROPOSED
◆ ◆ Phase: New Construction - Phase 1
◆ ◆ Phase Filter: Show Previous + New
3. In the LEVEL 1 - PHASE 1 - PROPOSED plan view, you will add the new elements, as
shown in Figure 10.73. First, add segments of Curtain Wall: Storefront to the existing
walls in the room shown at the lower left of Figure 10.73.
Because the new storefront is proposed and the interior walls exist, this action will auto-
matically demolish the openings necessary to accommodate the new wall type.
