Phase 2: Demolition
Now that we have created a new layout for the first phase of our renovations, we will create
similar views for the second phase. In addition to some selective demolition, we will add a design
option set to explore two different ideas for the second phase. Follow these steps to get started:
1. Duplicate the plan view LEVEL 1 - PHASE 1 DEMOLITION, and in the Properties palette
set the following values:

◆ ◆ View Name: LEVEL 1 - PHASE 2 DEMOLITION
◆ ◆ Phase: New Construction - Phase 2
◆ ◆ Phase Filter: Show Existing + Demo
2. Duplicate the 3D view PHASE 1 - DEMOLITION. Activate the duplicated view, and in the
Properties palette set the following values:

◆ ◆ View Name: PHASE 2 - DEMOLITION
◆ ◆ Phase: New Construction - Phase 2
◆ ◆ Phase Filter: Show Previous + Demo
3. Demolish the existing walls shown as dashed lines in Figure 10.75 using the demolition
tool (the small hammer) from the Modify tab in the ribbon. Note that you’ll have to split
the long wall between Phase 1 Proposed and Phase 2 Proposed in order to allow only a
portion of the wall to be demolished.

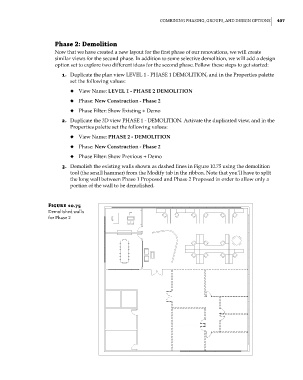

Figure 10.75
demolished walls
for Phase 2
