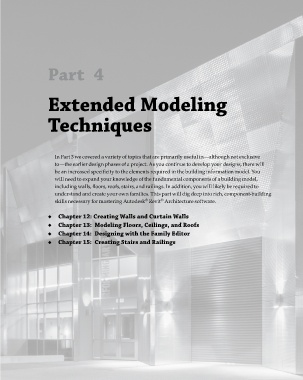

Part 4

Extended Modeling

Techniques

In Part 3 we covered a variety of topics that are primarily useful in—although not exclusive
to—the earlier design phases of a project. As you continue to develop your designs, there will
be an increased specificity to the elements required in the building information model. You
will need to expand your knowledge of the fundamental components of a building model,
including walls, floors, roofs, stairs, and railings. In addition, you will likely be required to
understand and create your own families. This part will dig deep into rich, component-building
skills necessary for mastering Autodesk Revit Architecture software.
®
®
◆ Chapter 12: Creating Walls and Curtain Walls
◆ Chapter 13: Modeling Floors, Ceilings, and Roofs
◆ Chapter 14: Designing with the Family Editor
◆ Chapter 15: Creating Stairs and Railings
