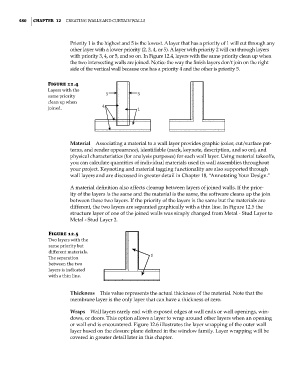

480   |  ChaPTER  12  Creating Walls and Curtain Walls



                                Priority 1 is the highest and 5 is the lowest. A layer that has a priority of 1 will cut through any
                                other layer with a lower priority (2, 3, 4, or 5). A layer with priority 2 will cut through layers
                                with priority 3, 4, or 5, and so on. In Figure 12.4, layers with the same priority clean up when
                                the two intersecting walls are joined. Notice the way the finish layers don’t join on the right
                                side of the vertical wall because one has a priority 4 and the other is priority 5.


                        Figure 12.4
                        layers with the
                        same priority        5          5
                        clean up when
                        joined.            4            1






                                Material  Associating a material to a wall layer provides graphic (color, cut/surface pat-
                                terns, and render appearance), identifiable (mark, keynote, description, and so on), and
                                physical characteristics (for analysis purposes) for each wall layer. Using material takeoffs,
                                you can calculate quantities of individual materials used in wall assemblies throughout
                                your project. Keynoting and material tagging functionality are also supported through
                                wall layers and are discussed in greater detail in Chapter 18, “Annotating Your Design.”
                                A material definition also affects cleanup between layers of joined walls. If the prior-
                                ity of the layers is the same and the material is the same, the software cleans up the join
                                between these two layers. If the priority of the layers is the same but the materials are
                                different, the two layers are separated graphically with a thin line. In Figure 12.5 the
                                structure layer of one of the joined walls was simply changed from Metal - Stud Layer to
                                Metal - Stud Layer 2.

                         Figure 12.5
                         two layers with the
                         same priority but
                         different materials.
                         The separation                     1
                         between the two
                         layers is indicated
                         with a thin line.


                                Thickness  This value represents the actual thickness of the material. Note that the
                                membrane layer is the only layer that can have a thickness of zero.

                                Wraps  Wall layers rarely end with exposed edges at wall ends or wall openings, win-
                                dows, or doors. This option allows a layer to wrap around other layers when an opening
                                or wall end is encountered. Figure 12.6 illustrates the layer wrapping of the outer wall
                                layer based on the closure plane defined in the window family. Layer wrapping will be
                                covered in greater detail later in this chapter.
