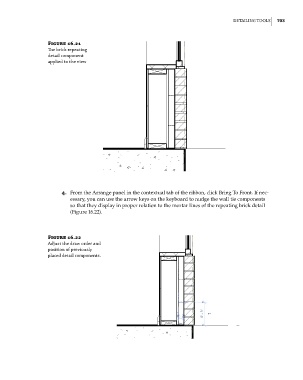

Detailing tools 703
Figure 16.21
The brick repeating
detail component
applied to the view
4. From the Arrange panel in the contextual tab of the ribbon, click Bring To Front. If nec-
essary, you can use the arrow keys on the keyboard to nudge the wall tie components
so that they display in proper relation to the mortar lines of the repeating brick detail
(Figure 16.22).
Figure 16.22
adjust the draw order and
position of previously
placed detail components.
