creating scheDules anD legenDs 731

projects. The order of the fields you add to the Scheduled Fields list at the right side (top to bot-
tom) determines the order of columns in your schedule from left to right.

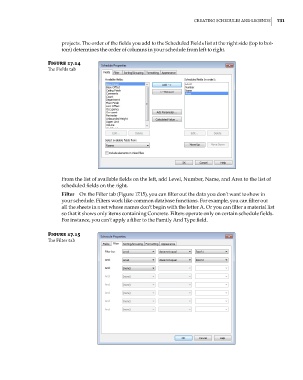

Figure 17.14
The Fields tab

From the list of available fields on the left, add Level, Number, Name, and Area to the list of
scheduled fields on the right.
Filter On the Filter tab (Figure 17.15), you can filter out the data you don’t want to show in
your schedule. Filters work like common database functions. For example, you can filter out
all the sheets in a set whose names don’t begin with the letter A. Or you can filter a material list
so that it shows only items containing Concrete. Filters operate only on certain schedule fields.
For instance, you can’t apply a filter to the Family And Type field.

Figure 17.15
The Filter tab
