760 | ChApTer 18 AnnotAting Your Design

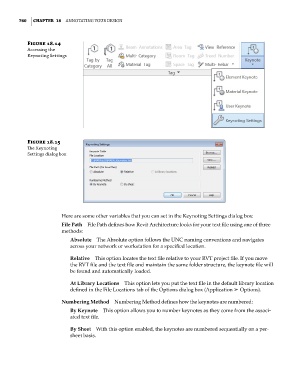

Figure 18.14
Accessing the
Keynoting settings

Figure 18.15
The Keynoting
settings dialog box

Here are some other variables that you can set in the Keynoting Settings dialog box:
File Path File Path defines how Revit Architecture looks for your text file using one of three
methods:
Absolute The Absolute option follows the UNC naming conventions and navigates
across your network or workstation for a specified location.

Relative This option locates the text file relative to your RVT project file. If you move
the RVT file and the text file and maintain the same folder structure, the keynote file will
be found and automatically loaded.

At Library Locations This option lets you put the text file in the default library location
defined in the File Locations tab of the Options dialog box (Application ➢ Options).

Numbering Method Numbering Method defines how the keynotes are numbered:
By Keynote This option allows you to number keynotes as they come from the associ-
ated text file.

By Sheet With this option enabled, the keynotes are numbered sequentially on a per-
sheet basis.
