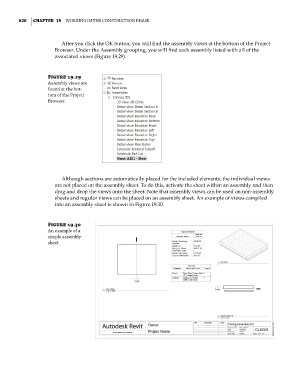

820 | ChaPteR 19 Working in the ConstruCtion Phase

After you click the OK button, you will find the assembly views at the bottom of the Project
Browser. Under the Assembly grouping, you will find each assembly listed with all of the
associated views (Figure 19.29).

Figure 19.29
assembly views are
found at the bot-
tom of the Project
Browser.

Although sections are automatically placed for the included elements, the individual views
are not placed on the assembly sheet. To do this, activate the sheet within an assembly and then
drag and drop the views onto the sheet. Note that assembly views can be used on non-assembly
sheets and regular views can be placed on an assembly sheet. An example of views compiled
into an assembly sheet is shown in Figure 19.30.

Figure 19.30
an example of a
simple assembly
sheet
