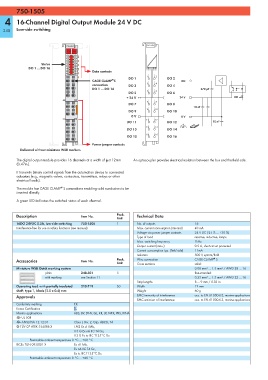

750-1505

4 16-Channel Digital Output Module 24 V DC

240 Low-side switching

750-1505
750-1505
13 14
1 2
3 4
5 6
Status 7 8
9 10
DO 1 ... DO 16 11 12
13 14 Data contacts
15 16
1 2
DO 1 DO 2
®
CAGE CLAMP S DO
3 4
connection DO 3 DO 4
DO 1 … DO 16 270 pF
5 6
DO 5 DO 6
+ 24 V 24 V DO
7 8
DO 7 DO 8
10 nF
9 10
DO 9 DO 10
0 V 0 V
11 12
DO 11 DO 12 10 nF
13 14
DO 13 DO 14
15 16
DO 15 DO 16
Power jumper contacts
Delivered without miniature WSB markers
The digital output module provides 16 channels at a width of just 12mm An optocoupler provides electrical isolation between the bus and the field side.
(0.47in.).
It transmits binary control signals from the automation device to connected
actuators (e.g., magnetic valves, contactors, transmitters, relays or other
electrical loads).
®
The module has CAGE CLAMP S connections enabling solid conductors to be
inserted directly.
A green LED indicates the switched status of each channel.

Description Item No. Pack. Technical Data
Unit
16DO 24VDC 0.5A, low-side switching 750-1505 1 No. of outputs 16
Interference-free for use in safety functions (see manual) Max. current consumption (internal) 40 mA
Voltage via power jumper contacts 24 V DC (-25 % ... +30 %)
Type of load resistive, inductive, lamps
Max. switching frequency 1kHz
Output current (max.) 0.5 A, short-circuit protected
Current consumption typ. (field side) 11mA
Isolation 500 V system/field
®
Accessories Item No. Pack. Wire connection CAGE CLAMP S
Unit Cross sections solid:
Miniature WSB Quick marking system 0.08 mm² ... 1.5 mm² / AWG 28 ... 16
plain 248-501 5 fine-stranded:
with marking see Section 11 0.25 mm² ... 1.5 mm² / AWG 22 ... 16
Strip lengths 8 ... 9 mm / 0.33 in
Operating tool, with partially insulated 210-719 50 Width 12 mm
shaft, type 1, blade (2.5 x 0.4) mm Weight 60 g
Approvals EMC immunity of interference acc. to EN 61000-6-2, marine applications
EMC emission of interference acc. to EN 61000-6-3, marine applications
Conformity marking 1
Korea Certification
Marine applications ABS, BV, DNV, GL, KR, LR, NKK, PRS, RINA
r UL 508
r ANSI/ISA 12.12.01 Class I, Div. 2, Grp. ABCD, T4
4 TÜV 07 ATEX 554086 X I M2 Ex d I Mb,
II 3 G Ex nA IIC T4 Gc,
II 3 D Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
IECEx TUN 09.0001 X Ex d I Mb,
Ex nA IIC T4 Gc,
Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
