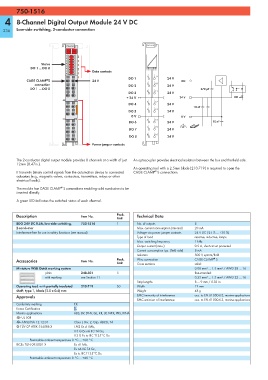

750-1516

4 8-Channel Digital Output Module 24 V DC

236 Low-side switching, 2-conductor connection

750-1516
750-1516
13 14
1
2
3
Status 4
5
DO 1 ... DO 8 6
7 Data contacts
8
1 9
DO 1 24 V
®
CAGE CLAMP S 24 V DO
connection DO 2 2 10 24 V
DO 1 … DO 8 270 pF
3 11
DO 3 24 V
+ 24 V 24 V DO
4 12
DO 4 24 V
10 nF
5 13
DO 5 24 V
0 V 0 V
6 14
DO 6 24 V 10 nF
7 15
DO 7 24 V
8 16
DO 8 24 V
Power jumper contacts
The 2-conductor digital output module provides 8 channels at a width of just An optocoupler provides electrical isolation between the bus and the field side.
12mm (0.47in.).
An operating tool with a 2.5mm blade (210-719) is required to open the
®
It transmits binary control signals from the automation device to connected CAGE CLAMP S connections.
actuators (e.g., magnetic valves, contactors, transmitters, relays or other
electrical loads).
®
The module has CAGE CLAMP S connections enabling solid conductors to be
inserted directly.
A green LED indicates the switched status of each channel.

Description Item No. Pack. Technical Data
Unit
8DO 24V DC 0.5A, low-side switching, 750-1516 1 No. of outputs 8
2-conductor Max. current consumption (internal) 20 mA
Interference-free for use in safety functions (see manual) Voltage via power jumper contacts 24 V DC (-25 % ... +30 %)
Type of load resistive, inductive, lamps
Max. switching frequency 1 kHz
Output current (max.) 0.5 A, short-circuit protected
Current consumption typ. (field side) 8 mA
Isolation 500 V system/field
®
Accessories Item No. Pack. Wire connection CAGE CLAMP S
Unit Cross sections solid:
Miniature WSB Quick marking system 0.08 mm² ... 1.5 mm² / AWG 28 ... 16
plain 248-501 5 fine-stranded:
with marking see Section 11 0.25 mm² ... 1.5 mm² / AWG 22 ... 16
Strip lengths 8 ... 9 mm / 0.33 in
Operating tool, with partially insulated 210-719 50 Width 12 mm
shaft, type 1, blade (2.5 x 0.4) mm Weight 48 g
Approvals EMC immunity of interference acc. to EN 61000-6-2, marine applications
EMC emission of interference acc. to EN 61000-6-3, marine applications
Conformity marking 1
Korea Certification
Marine applications ABS, BV, DNV, GL, KR, LR, NKK, PRS, RINA
r UL 508
r ANSI/ISA 12.12.01 Class I, Div. 2, Grp. ABCD, T4
4 TÜV 07 ATEX 554086 X I M2 Ex d I Mb,
II 3 G Ex nA IIC T4 Gc,
II 3 D Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
IECEx TUN 09.0001 X Ex d I Mb,
Ex nA IIC T4 Gc,
Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
