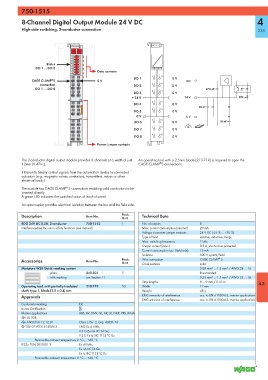

750-1515

8-Channel Digital Output Module 24 V DC 4

High-side switching, 2-conductor connection 235

750-1515
750-1515
13 14
1
2
3
Status 4
5
DO 1 ... DO 8 6
7 Data contacts
8
1 9
DO 1 0 V
®
CAGE CLAMP S 0 V DO
connection DO 2 2 10 0 V
DO 1 … DO 8 270 pF
3 11
DO 3 0 V
+ 24 V 24 V DO
4 12
DO 4 0 V
10 nF
5 13
DO 5 0 V
0 V 0 V
6 14
DO 6 0 V 10 nF
7 15
DO 7 0 V
8 16
DO 8 0 V
Power jumper contacts
The 2-conductor digital output module provides 8 channels at a width of just An operating tool with a 2.5mm blade (210-719) is required to open the
®
12mm (0.47in.). CAGE CLAMP S connections.
It transmits binary control signals from the automation device to connected
actuators (e.g., magnetic valves, contactors, transmitters, relays or other
electrical loads).
®
The module has CAGE CLAMP S connections enabling solid conductors to be
inserted directly.
A green LED indicates the switched status of each channel.
An optocoupler provides electrical isolation between the bus and the field side.

Description Item No. Pack. Technical Data
Unit
8DO 24V DC 0.5A, 2-conductor 750-1515 1 No. of outputs 8
Interference-free for use in safety functions (see manual) Max. current consumption (internal) 20 mA
Voltage via power jumper contacts 24 V DC (-25 % ... +30 %)
Type of load resistive, inductive, lamps
Max. switching frequency 1 kHz
Output current (max.) 0.5 A, short-circuit protected
Current consumption typ. (field side) 15 mA
Isolation 500 V system/field
®
Accessories Item No. Pack. Wire connection CAGE CLAMP S
Unit Cross sections solid:
Miniature WSB Quick marking system 0.08 mm² ... 1.5 mm² / AWG 28 ... 16
plain 248-501 5 fine-stranded:
with marking see Section 11 0.25 mm² ... 1.5 mm² / AWG 22 ... 16
Strip lengths 8 ... 9 mm / 0.33 in 4.3
Operating tool, with partially insulated 210-719 50 Width 12 mm
shaft, type 1, blade (2.5 x 0.4) mm Weight 48 g
Approvals EMC immunity of interference acc. to EN 61000-6-2, marine applications
EMC emission of interference acc. to EN 61000-6-3, marine applications
Conformity marking 1
Korea Certification
Marine applications ABS, BV, DNV, GL, KR, LR, NKK, PRS, RINA
r UL 508
r ANSI/ISA 12.12.01 Class I, Div. 2, Grp. ABCD, T4
4 TÜV 07 ATEX 554086 X I M2 Ex d I Mb,
II 3 G Ex nA IIC T4 Gc,
II 3 D Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
IECEx TUN 09.0001 X Ex d I Mb,
Ex nA IIC T4 Gc,
Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
