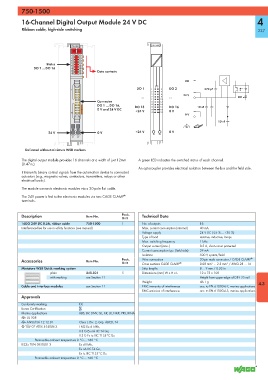

Page 239 - Wago_AutomationTechnology_Volume3_2015_US.pdf

750-1500

16-Channel Digital Output Module 24 V DC 4

Ribbon cable, high-side switching 237

750-1500
750-1500
13 14
1 2
3 4
5 6
Status 7 8
9 10
DO 1 ... DO 16 11 12
13 14 Data contacts
15 16
DO
DO 1 DO 2 270 pF
1 1 2
3 4
5 6 24 V
… 7 8 … DO
9 10
Connector 11 12
DO 1 … DO 16, DO 15 13 14 DO 16 10 nF
15
16
0 V and 24 V DC 17 18
19 +24 V 19 20 0 V
0 V
10 nF
24 V 0 V +24 V 0 V
21 22
21 22
Delivered without miniature WSB markers

The digital output module provides 16 channels at a width of just 12mm A green LED indicates the switched status of each channel.
(0.47in.).
An optocoupler provides electrical isolation between the bus and the field side.
It transmits binary control signals from the automation device to connected
actuators (e.g., magnetic valves, contactors, transmitters, relays or other
electrical loads).
The module connects electronic modules via a 20-pole flat cable.
®
The 24V power is fed to the electronic modules via two CAGE CLAMP
terminals.

Description Item No. Pack. Technical Data
Unit
16DO 24V DC 0.5A, ribbon cable 750-1500 1 No. of outputs 16
Interference-free for use in safety functions (see manual) Max. current consumption (internal) 40 mA
Voltage supply 24 V DC (-25 % ... +30 %)
Type of load resistive, inductive, lamps
Max. switching frequency 1 kHz
Output current (max.) 0.5 A, short-circuit protected
Current consumption typ. (field side) 29 mA
Isolation 500 V system/field
Accessories Item No. Pack. Wire connection 20-pin male connector / CAGE CLAMP ®
Unit Cross sections CAGE CLAMP ® 0.08 mm² ... 2.5 mm² / AWG 28 ... 16
Miniature WSB Quick marking system Strip lengths 8 ... 9 mm / 0.33 in
plain 248-501 5 Dimensions (mm) W x H x L 12 x 73 x 100
with marking see Section 11 Height from upper-edge of DIN 35 rail
Weight 46.1 g 4.3
Cable and interface modules see Section 11 EMC immunity of interference acc. to EN 61000-6-2, marine applications
EMC emission of interference acc. to EN 61000-6-3, marine applications
Approvals
Conformity marking 1
Korea Certification
Marine applications ABS, BV, DNV, GL, KR, LR, NKK, PRS, RINA
r UL 508
r ANSI/ISA 12.12.01 Class I, Div. 2, Grp. ABCD, T4
4 TÜV 07 ATEX 554086 X I M2 Ex d I Mb,
II 3 G Ex nA IIC T4 Gc,
II 3 D Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
IECEx TUN 09.0001 X Ex d I Mb,
Ex nA IIC T4 Gc,
Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
