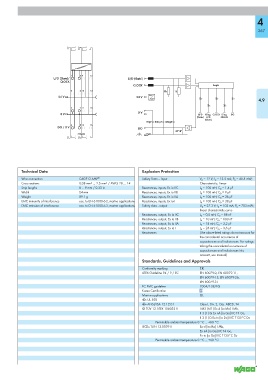

4

367

9 13
U/D (Gate)/ U/D (Gate)
CLOCK
CLOCK Logic
10 14 1k 1k
24 V 24 V 24V
8.2V 4.9

11 15
0 V
0 V U/D Diag. CLOCK Diag. DO
(Gate) U/D CLOCK
(Gate)
10 pF 330 pF 330 pF
12 16
DO / 0 V
DO
4.7 nF
750-633

Technical Data Explosion Protection
Wire connection CAGE CLAMP ® Safety Data – Input V 0 = 12 V; I 0 = 13.5 mA; P 0 = 40.5 mW;
Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 14 Characteristic: Linear
Strip lengths 8 ... 9 mm / 0.33 in Reactances, inputs, Ex ia IIC L 0 = 100 mH; C 0 = 1,4 μF
Width 24 mm Reactances, inputs, Ex ia IIB L 0 = 100 mH; C 0 = 9 μF
Weight 89.1 g Reactances, inputs, Ex ia IIA L 0 = 100 mH; C 0 = 36 μF
EMC immunity of interference acc. to EN 61000-6-2, marine applications Reactances, inputs, Ex ia I L 0 = 100 mH; C 0 = 38 μF
EMC emission of interference acc. to EN 61000-6-3, marine applications Safety data - output U 0 = 27.3 V; I 0 = 103 mA; P 0 = 703 mW;
linear characteristic curve
Reactances, output, Ex ia IIC L 0 = 0,5 mH; C 0 = 88 nF
Reactances, output, Ex ia IIB L 0 = 10 mH; C 0 = 683 nF
Reactances, output, Ex ia IIA L 0 = 18 mH; C 0 = 2,2 μF
Reactances, output, Ex ia I L 0 = 26 mH; C 0 = 3,6 μF
Reactances (The above-listed ratings do not account for
the coincidental occurrence of
capacitances and inductances. For ratings
taking the coincidental occurrence of
capacitances and inductances into
account, see manual)
Standards, Guidelines and Approvals
Conformity marking 1
ATEX Guideline 94 / 9 / EC EN 60079-0, EN 60079-11,
EN 60079-15, EN 60079-26,
EN 60079-31
EC EMC guideline 2004/108/EG
Korea Certification
Marine applications GL
r UL 508
r ANSI/ISA 12.12.01 Class I, Div. 2, Grp. ABCD, T4
4 TÜV 12 ATEX 106032 X I M2 (M1) Ex d [ia Ma] I Mb,
II 3 (1) G Ex nA [ia Ga] IIC T4 Gc,
II 3 (1) D Ex tc [ia Da] IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
IECEx TUN 12.0039 X Ex d [ia Ma] I Mb,
Ex nA [ia Ga] IIC T4 Gc,
Ex tc [ia Da] IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
