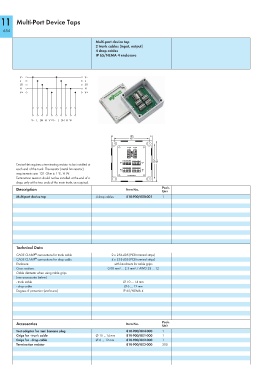

11 Multi-Port Device Taps

654

Multi-port device tap
2 trunk cables (input, output)
4 drop cables
IP 65/NEMA 4 enclosure

V– V–
L L
SH SH
H H
V+ V+

V– L SH H V+ V– L SH H V+

<______________ 125 ______________>
<___________ 107 ___________>
TR UNK TR UNK
1 2

TAP TAP <___________ 1 07 ___________> <______________ 1 25 ______________>
DeviceNet requires a terminating resistor to be installed at 1 2
each end of the trunk. The resistor (metal fim resistor) TAP TAP
3 4
requirements are: 121 Ohm ± 1 %, ¼ W.
DeviceNet TM
Termination resistor should not be installed at the end of a
drop; only at the two ends of the main trunk, as required.
Description Item No. Pack.
Unit
Multi-port device tap 4 drop cables 810-900/000-001 1

Technical Data
®
CAGE CLAMP connections for trunk cable 2 x 256-405 (PCB terminal strips)
®
CAGE CLAMP connections for drop cable 4 x 255-405 (PCB terminal strips)
Enclosure with knockouts for cable grips
Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 12
Cable diameter when using cable grips
(see accessories below)
- trunk cable Ø 10 ... 14 mm
- drop cable Ø 6 ... 12 mm
Degree of protection (enclosure) IP 65/NEMA 4

Accessories Item No. Pack.
Unit
Test adapter for mini banana plug 810-900/004-000 1
Grips for - trunk cable Ø 10 ...14 mm 810-900/001-000 1
Grips for - drop cable Ø 6 ... 12 mm 810-900/002-000 1
Termination resistor 810-900/003-000 200
