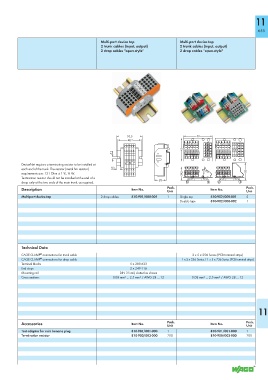

Multi-port device tap Multi-port device tap
2 trunk cables (input, output) 2 trunk cables (input, output)
2 drop cables "open-style" 2 drop cables "open-style"

<_____ 53,5 _____> <________53________>
<______42______>
<_____ 49,2 ____>
5,2 <__

DeviceNet requires a terminating resistor to be installed at < V+ H SH L V-
<__ 8,5
each end of the trunk. The resistor (metal fim resistor) <
requirements are: 121 Ohm ± 1 %, ¼ W. <__24,5__> <____32____>
Termination resistor should not be installed at the end of a
drop; only at the two ends of the main trunk, as required. <_ 28 _>
Description Item No. Pack. Item No. Pack.
Unit
Unit
Multi-port device tap 2 drop cables 810-901/000-001 1 Single tap 810-902/000-001 5
Double taps 810-902/000-002 1

Technical Data
®
CAGE CLAMP connections for trunk cable 2 x 5 x 256 Series (PCB terminal strips)
®
CAGE CLAMP connections for drop cable 1 x 5 x 256 Series / 1 x 5 x 736 Series (PCB terminal strips)
Terminal blocks 5 x 280-633
End stops 2 x 249-116
Mounting rail DIN 35 rail, slotted as shown
Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 12 0.08 mm² ... 2.5 mm² / AWG 28 ... 12

11

Accessories Item No. Pack. Item No. Pack.
Unit Unit
Test adapter for mini banana plug 810-901/001-000 1 810-901/001-000 1
Termination resistor 810-900/003-000 200 810-900/003-000 200
