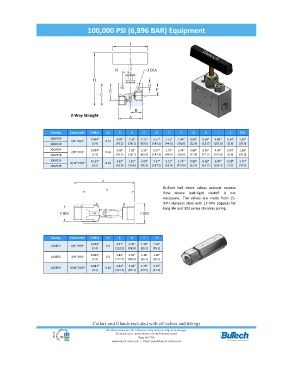

100,000 PSI (6,896 BAR) Equipment
100,000 PSI (6,896 BAR) Equipment

2-Way Straight

Catalog Connection Orifice Cv A B C D E F G H I J Thk.
100V41V 0.094" 3.00" 1.50" 2.25" 5.57" 1.75" 1.44" 0.88" 0.50" 4.00" 0.34" 1.38"
1/4" XH/P 0.12
100V41R (2.4) (76.2) (38.1) (63.5) (141.5) (44.5) (36.6) (22.4) (12.7) (101.6) (8.6) (35.0)
100V61V 0.094" 3.00" 1.50" 2.25" 5.57" 1.75" 1.44" 0.88" 0.50" 4.00" 0.34" 1.38"
3/8" XH/P 0.12
100V61R (2.4) (76.2) (38.1) (63.5) (141.5) (44.5) (36.6) (22.4) (12.7) (101.6) (8.6) (35.0)
100V91V 0.125" 3.62" 1.81" 3.00" 7.37" 2.12" 1.75" 0.88" 0.62" 6.00" 0.28" 1.75"
9/16" XH/P 0.23
100V91R (3.2) (91.9) (46.0) (76.2) (187.2) (53.8) (44.45) (22.4) (15.7) (152.4) (7.1) (44.5)

BuTech ball check valves prevent reverse
flow where leak-tight shutoff is not
necessary. The valves are made from 15-
5PH stainless steel with 17-4PH poppets for
long life and 303 series stainless spring.

Catalog Connection Orifice Cv A B C D

100BC4 1/4" XH/P 0.094" 0.2 4.81" 3.50" 1.38" 1.38"
(2.4) (122.2) (88.9) (35.1) (35.1)
0.094" 4.81" 3.50" 1.38" 1.38"
100BC6 3/8" XH/P 0.2
(2.4) (122.2) (88.9) (35.1) (35.1)
0.187" 4.61" 3.43" 1.75" 1.75"
100BC9 9/16" XH/P 0.63
(3.2) (117.1) (87.1) (44.5) (44.5)

Collars and Glands included with all valves and fittings
8 All dimensions are for reference only and are subject to change.
HP-09 Dimensions in parentheses are millimeters (mm)
Page HP-19A
Page HP-19A
