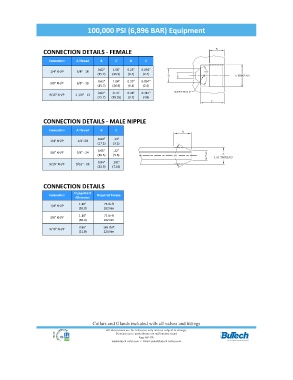

100,000 PSI (6,896 BAR) Equipment
100,000 PSI (6,896 BAR) Equipment

CONNECTION DETAILS - FEMALE

Connection A Thread B C D E

0.62" 1.06" 0.25" 0.094"
1/4" XH/P 5/8" - 18
(15.7) (26.9) (6.4) (2.4)
0.62" 1.06" 0.25" 0.094"
3/8" XH/P 5/8" - 18
(15.7) (26.9) (6.4) (2.4)
0.62" 0.75" 0.38" 0.187"
9/16" XH/P 1-1/8" - 12
(15.7) (19.05) (9.7) (4.8)

CONNECTION DETAILS - MALE NIPPLE

Connection A Thread B C

0.69" .13"
1/4" XH/P 1/4"-28
(17.5) (3.3)
0.65" .22"
3/8" XH/P 3/8" - 24
(16.5) (5.6)
0.94" .281"
9/16" XH/P 9/16" - 18
(23.9) (7.16)

CONNECTION DETAILS

Engagement
Connection Required Torque
Allowance
1/4" XH/P 1.18" 75 lb-ft
(30.0) 102 Nm
1.18" 75 lb-ft
3/8" XH/P
(30.0) 102 Nm
0.86" 165 lb-ft
9/16" XH/P
(21.8) 224 Nm

Collars and Glands included with all valves and fittings
Page HP-19E
8 All dimensions are for reference only and are subject to change.
HP-09 Dimensions in parentheses are millimeters (mm)
