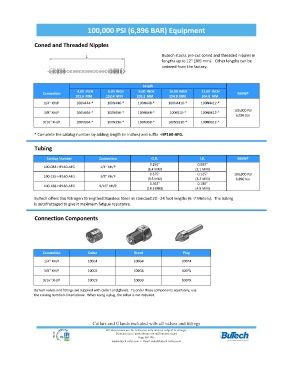

100,000 PSI (6,896 BAR) Equipment
100,000 PSI (6,896 BAR) Equipment

Coned and Threaded Nipples

Butech stocks pre-cut coned and threaded nipples in
lengths up to 12" (305 mm). Other lengths can be
ordered from the factory.

Length
4.00 INCH 6.00 INCH 8.00 INCH 10.00 INCH 12.00 INCH
Connection MAWP
101.6 MM 152.4 MM 203.2 MM 254.0 MM 304.8 MM
1/4" XH/P 100N444-* 100N446-* 100N448-* 100N4410-* 100N4412-*
100,000 PSI
3/8" XH/P 100N664-* 100N666-* 100N668-* 1006610-* 100N6612-*
6,896 bar
9/16" XH/P 100N994-* 100N996-* 100N998-* 100N9910-* 100N9912-*

* Complete the catalog number by adding length (in inches) and suffix -HP160-AFG.

Tubing

Catalog Number Connection O.D. I.D. MAWP
0.250" 0.083"
100-083-HP160-AFG 1/4" XH/P
(6.4 MM) (2.1 MM)
0.375" 0.125" 100,000 PSI
100-125-HP160-AFG 3/8" XH/P
(9.5 MM) (3.2 MM) 6,896 bar
0.562" 0.188"
100-188-HP160-AFG 9/16" XH/P
(14.3 MM) (4.8 MM)
BuTech offers this Nitrogen Strengthed Stainless Steel in standard 20 - 24 foot lengths (6 -7 Meters). The tubing
is autofrettaged to give it maximum fatigue resistance.

Connection Components

Connection Collar Gland Plug
1/4" XH/P 100C4 100G4 100P4

3/8" XH/P 100C6 100G6 100P6
9/16" XH/P 100C9 100G9 100P9

BuTech valves and fittings are supplied with collars and glands. To order these components seperately, use
the catalog numbers listed above. When using a plug, the collar is not required.

Page HP-19D
Collars and Glands included with all valves and fittings
8 All dimensions are for reference only and are subject to change.
HP-09 Dimensions in parentheses are millimeters (mm)
