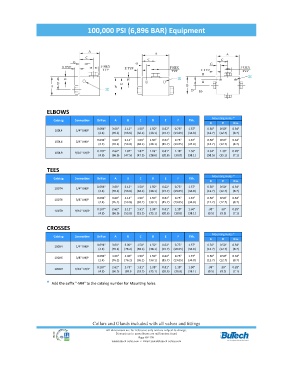

100,000 PSI (6,896 BAR) Equipment
100,000 PSI (6,896 BAR) Equipment

ELBOWS
Mounting Holes *
Catalog Connection Orifice A B C D E F Thk.
G H Dia.
0.094" 3.00" 2.12" 1.50" 1.50" 0.62" 0.75" 1.37" 0.50" 0.50" 0.34"
100L4 1/4" XH/P
(2.4) (76.2) (53.8) (38.1) (38.1) (15.7) (19.05) (34.8) (12.7) (12.7) (8.7)
0.094" 3.00" 2.12" 1.50" 1.50" 0.62" 0.75" 1.37" 0.50" 0.50" 0.34"
100L6 3/8" XH/P
(2.4) (76.2) (53.8) (38.1) (38.1) (15.7) (19.05) (34.8) (12.7) (12.7) (8.7)
100L9 9/16" XH/P 0.187" 2.62" 1.87" 1.87" 1.13" 0.81" 1.18" 1.50" 2.32" 1.38" 0.28"
(4.8) (66.5) (47.5) (47.5) (28.6) (20.6) (30.0) (38.1) (58.5) (35.1) (7.1)

TEES
Mounting Holes *
Catalog Connection Orifice A B C D E F Thk.
G H Dia.
0.094" 3.00" 2.12" 1.50" 1.50" 0.62" 0.75" 1.37" 0.50" 0.50" 0.34"
100T4 1/4" XH/P
(2.4) (76.2) (53.8) (38.1) (38.1) (15.7) (19.05) (34.8) (12.7) (12.7) (8.7)
0.094" 3.00" 2.12" 1.50" 1.50" 0.62" 0.75" 1.37" 0.50" 0.50" 0.34"
100T6 3/8" XH/P
(2.4) (76.2) (53.8) (38.1) (38.1) (15.7) (19.05) (34.8) (12.7) (12.7) (8.7)
100T9 9/16" XH/P 0.187" 2.62" 2.12" 1.31" 1.38" 0.81" 1.18" 1.50" .38" .38" 0.28"
(4.8) (66.5) (53.8) (33.3) (35.1) (20.6) (30.0) (38.1) (9.5) (9.5) (7.1)

CROSSES
Mounting Holes *
Catalog Connection Orifice A B C D E F Thk.
G H Dia.
0.094" 3.00" 3.00" 1.50" 1.50" 0.62" 0.75" 1.37" 0.50" 0.50" 0.34"
100X4 1/4" XH/P
(2.4) (76.2) (76.2) (38.1) (38.1) (15.7) (19.05) (34.8) (12.7) (12.7) (8.7)
0.094" 3.00" 3.00" 1.50" 1.50" 0.62" 0.75" 1.37" 0.50" 0.50" 0.34"
100X6 3/8" XH/P
(2.4) (76.2) (76.2) (38.1) (38.1) (15.7) (19.05) (34.8) (12.7) (12.7) (8.7)
100X9 9/16" XH/P 0.187" 2.62" 2.75" 1.31" 1.38" 0.81" 1.18" 1.50" .38" .38" 0.28"
(4.8) (66.5) (69.9 (33.3) (35.1) (20.6) (30.0) (38.1) (9.5) (9.5) (7.1)
* Add the suffix "-MH" to the catalog number for Mounting holes.

Collars and Glands included with all valves and fittings
8 All dimensions are for reference only and are subject to change.
HP-09 Dimensions in parentheses are millimeters (mm)
Page HP-19B
Page HP-19B
