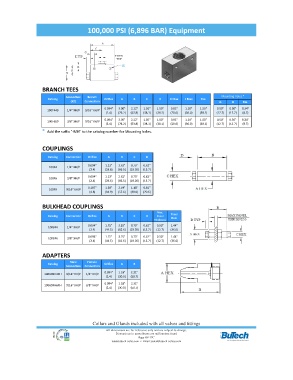

100,000 PSI (6,896 BAR) Equipment
100,000 PSI (6,896 BAR) Equipment

BRANCH TEES

Connection Branch Mounting Holes *
Catalog Orifice A B C D E Max F Max Thk.
(X2) Connection G H Dia.
100T449 1/4" XH/P 9/16" XH/P 0.094" 3.00" 2.12" 1.50" 1.50" 0.81" 1.18" 1.50" 0.50" 0.50" 0.34"
(2.4) (76.2) (53.8) (38.1) (38.1) (20.6) (30.0) (38.1) (12.7) (12.7) (8.7)
0.094" 3.00" 2.12" 1.50" 1.50" 0.81" 1.18" 1.50" 0.50" 0.50" 0.34"
100T669 3/8" XH/P 9/16" XH/P
(2.4) (76.2) (53.8) (38.1) (38.1) (20.6) (30.0) (38.1) (12.7) (12.7) (8.7)
* Add the suffix "-MH" to the catalog number for Mounting holes.

COUPLINGS
Catalog Connection Orifice A B C D
0.094" 1.13" 2.62" 0.75" 0.62"
100F4 1/4" XH/P
(2.4) (28.6) (66.5) (19.05) (15.7)
100F6 3/8" XH/P 0.094" 1.13" 2.62" 0.75" 0.62"
(2.4) (28.6) (66.5) (19.05) (15.7)
0.187" 1.38" 2.19" 1.18" 0.81"
100F9 9/16" XH/P
(4.8) (34.9) (55.6) (30.0) (20.6)

BULKHEAD COUPLINGS
Max. Panel
Catalog Connection Orifice A B C D Panel Hole
Thickness
100BF4 1/4" XH/P 0.094" 1.75" 3.25" 0.75" 0.62" 0.50" 1.44"
(2.4) (44.5) (82.6) (19.05) (15.7) (12.7) (36.6)
100BF6 3/8" XH/P 0.094" 1.75" 3.25" 0.75" 0.62" 0.50" 1.44"
(2.4) (44.5) (82.6) (19.05) (15.7) (12.7) (36.6)

ADAPTERS
Male Female
Catalog Orifice A B
Connection Connection
0.094" 1.18" 2.31"
100A9XH4XH 9/16" XH/P 1/4" XH/P
(2.4) (30.0) (58.7)
100A9XH6XH 9/16" XH/P 3/8" XH/P 0.094" 1.18" 2.31"
(2.4) (30.0) (58.7)

Collars and Glands included with all valves and fittings
8 All dimensions are for reference only and are subject to change.
HP-09 Dimensions in parentheses are millimeters (mm)
Page HP-19C
Page HP-19C
